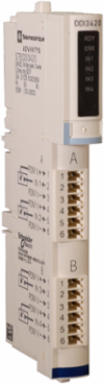

Schneider Electric STBDDI3420K Digital Input Kit, 24V DC, 4 Inputs, Mercury Free, IP20

MPN: STBDDI3420K
PPN: SCH-STBDDI3420K
UNSPSC: 32151601

$131.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Digital Input Kit from Schneider Electric is designed for efficient automation and control within various industrial applications. Operating at 24V DC and featuring four mercury-free inputs, this module ensures a sustainable approach without compromising on performance. With an IP20 rating, it is well-suited for installation in environments where dust and solid objects are minimal, effectively supporting the needs of modern PLC and HMI systems. This input kit is a reliable choice for those seeking to enhance their data acquisition processes and streamline operations.

Features

Easy to connect
4 inputs
Power supply 24 V DC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

Depth	65.1 mm

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Current State 1 Guaranteed	>= 2.5 mA, >= 2.5 mA, >= 2.5 mA, >= 2.5 mA
Vibration Resistance	+/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)
Certificate Agency	CSA, FM Class 1 Division 2, UL
Local Publishable Date	2026-01-12
Device Type	Automation - Distributed inputs/ouputs
Traceability	Yes
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard
Market Segmentation	Industrial
Bearing Track Assembly Possible	false
Electrical Connection	screw terminal
Hot Swapping Fallback	yes for standard NIMs
Marking	CE
Optical Interface Present	false
Product Availability	Non-Stock - Not normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon STB distributed I/O solution
Shock Resistance	30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Can	true
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	true
Supporting Protocol For Profibus	true
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Typical Current Consumption	45 mA 5 V DC for logic bus
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Fieldbus Connection Over Separate Bus Coupler Possible	true
Current Supplied By Sensor	50 mA per channel
Short Circuit Protection Outputs Present	false
Supply Voltage Ac 60 Hz	24-24 V
Height Nominal	18.4 mm
Silcl Acc. To En 62061	false
Supporting Protocol For Tcp/Ip	true
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Performance Level According To En Iso 13849 1	none
Supporting Protocol For As Interface Safety At Work	false
Warranty In Months	18

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Kit Composition	STBXTS2100, 6-terminal spring clamp connector, STBDDI3420 module, STBXTS1100, 6-terminal screw type connector, STBXBA1000 base
Voltage State 0 Guaranteed	-3...5 V at state 0, -3...5 V at state 0-3...5 V at state 0, -3...5 V at state 0
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Current State 0 Guaranteed	<= 1.2 mA<= 1.2 mA
Front Installation Possible	false
Local Signalling	1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (IN1 to IN2)1 LED (red) for module error (ERR)
Network Type	AC/DC
Power Supply Type	power distribution module
Product Or Component Type	standard digital input kit
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	No
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	true
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	true
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Voltage State 1 Guaranteed	at state 1 11...30 V
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Digital Outputs Configurable	false
System Accessory	true
Digital Inputs Configurable	false
Supply Voltage Ac 50 Hz	24-24 V
Time Delay At Signal Change	0.925-1.35 ms
Width Nominal	125 mm
Supporting Protocol For Ethernet/Ip	true
Wall Mounting/Direct Mounting Possible	false
Customs Code	8538908180
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Io Link Master Present	false
Rack Assembly Possible	false
Supporting Protocol For Data Highway	false

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C without derating), -25-70 °C without derating)-25-70 °C without derating), -25-70 °C without derating)
Product Compatibility	I/O base STBXBA1000, power distribution module STBPDT3100/3105
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating
Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 % 60-60 °C without condensation

General Attributes

Product Or Component Type	standard digital input kit

Range Of Product	Modicon STB distributed I/O solution

ETIM

ETIM 8	EC001599
ETIM 10	EC001599

ETIM 9	EC001599

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Discrete Input Number	type 1 at 24 V DC, 4
Input Filtering	1 ms, 2 ms, 4 ms, 8 ms, 0.5 ms, 16 ms, 0.2 ms
Input Voltage Limits	-3...5 V, 11...30 V, -3...5 V
Discrete Input Logic	positive or negative
Response Time On Input	0.925 ms (off to on)1.35 ms (on to off)

Discrete Input Voltage	- 3...5 V, 11...30 Vtype 1, - 3...5 V
Input Protection Type	input protection resistor-limited, reverse polarity protection
Discrete Input Current	8 mA at 24 V DC
Discrete Input Voltage Type	DC
