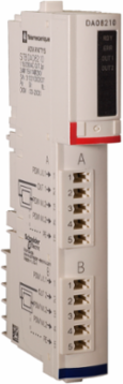

Schneider Electric STBDAO8210K Standard Digital Output Kit, 115-230 V AC, 2 Outputs, 0.125 kg
- MPN: STBDAO8210K
- PPN: SCH-STBDAO8210K
CAD
$181.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This standard digital output kit from Schneider Electric is designed to enhance operational control within automation systems. With dual outputs that operate efficiently at 115-230 V AC, it enables effective management of various devices, ensuring seamless integration into your PLC and HMI setups. Weighing just 0.125 kg, this I/O module not only provides robust functionality but also reflects the quality and reliability that Schneider Electric is known for in the field of automation and control. Its capability to handle multiple outputs makes it a valuable component for sophisticated data acquisition and control applications.
Documentation & Downloads
Specifications
Additional
- Discrete Output Number
- 2
- Discrete Output Voltage
- 115...230 V AC
- Output Voltage Range
- 20...265 V AC
- Response Time
- 10 ms off-to-on, 10.5 ms on-to-off
- Hot Swapping
- Yes for standard NIMs
- Insulation Between Channels and Logic Bus
- 1780 V for 1 minute
- Surge Current
- 20 A (40 ms), 30 A (20 ms)
- Reset
- Manual or automatic reset COM fault
- Overvoltage Category
- II
- Height
- 18.4 mm (0.72 in)
- Width
- 128.3 mm (5.05 in)
- Standards
- IEC 61131-2
- Pollution Degree
- 2 IEC 60664-1
- Ingress Protection
- IP20 IEC 61131-2 class 1
- Ambient Storage Temperature
- -40...85 °C (-40...185 °F) without derating
- Vibration Resistance
- 3 gn (58–150 Hz), 5 gn (58–150 Hz), ±0.35 mm (10–58 Hz)
- Country of Origin
- ID (Indonesia)
- Mercury Free
- Yes
- Reach Regulation
- Contains SVHC above threshold
- Product Compatibility
- I/O base STBXBA2000, power distribution module STBPDT2100/2105
- Kit Composition
- STBXTS1100 5-terminal screw connector, STBDAO8210 module, STBXTS2110 5-terminal spring clamp connector, STBXBA2000 base
- Product Or Component Type
- Standard digital output kit
Discrete Output TypeTriac
Discrete Output Current1000 mA at 60 °C, 2000 mA at 30 °C
Absolute Maximum Voltage300 V (10 s), 400 V (20 ms)
Cold SwappingYes
Protection TypeOutput surge protection varistance and RC circuit
Maximum Leakage Current2 mA at 115 V, 2.5 mA at 230 V
Minimum Load5 mA
Power Consumption45 mA at 5 V DC logic bus
Status LEDs1 Green module status, 2 Green channel status, 1 Red module error
Depth70 mm (2.76 in)
Net Weight0.125 kg
CertificationsUL, CSA, FM Class 1 Division 2
Operating Altitude<= 2000 m (<= 6561.68 ft)
Ambient Operating Temperature0...60 °C (32...140 °F) without derating
Relative Humidity95% at 60 °C (140 °F) without condensation
Shock Resistance30 gn 11 ms IEC 88 ref 2-27
Discrete Output LogicPositive or negative
Rohs Exemption InformationYes
China Rohs RegulationX
Fallback StatusState 0 basic NIMs, user configurable standard NIMs
SupplyPower distribution module
Warranty18 months
