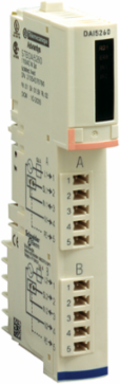

Schneider Electric STBDAI5260K Standard Digital Input Kit - 115V AC, 2 Inputs, CE Marked, IP20
- MPN: STBDAI5260K
- PPN: SCH-STBDAI5260K
CAD
$185.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Standard Digital Input Kit from Schneider Electric is designed to enhance automation and control systems, featuring two inputs that operate at 115V AC. With a robust construction that meets CE marking standards and an IP20 rating, this module is well-suited for various industrial applications, ensuring reliable performance in controlled environments. As part of a comprehensive array of PLC, HMI, and data acquisition solutions, it facilitates seamless integration and efficient data processing. Whether you are upgrading existing systems or building new controls, this kit offers the functionality and reliability necessary for modern automation demands.
Documentation & Downloads
Specifications
Additional
- Discrete Input Voltage
- 115 V AC
- Permissible Voltage
- 132 V
- Network Frequency
- 50/60 Hz
- Current State 0 Guaranteed
- <= 2 mA
- Discrete Input Logic
- positive or negative
- Protection Type
- input protection metal oxide varistor limited, power protection external fuse 0.5 A
- Insulation Between Channels And Logic Bus
- 1780 V for 1 minute
- Hot Swapping
- yes for standard NIMs
- Current Consumption
- 45 mA 5 V DC logic bus
- Overvoltage Category
- II
- Dimensions (W x H x D)
- 125 mm x 18.4 mm x 65.1 mm (4.92 in x 0.72 in x 2.56 in)
- Standards
- EN/IEC 61131-2 type 1
- Pollution Degree
- 2 IEC 60664-1
- IP Degree of Protection
- IP20 IEC 61131-2 class 1
- Ambient Air Temperature for Storage
- -40...85 °C (-40...185 °F) without derating
- Vibration Resistance
- 3 gn 58-150 Hz 35 x 7.5 mm, 5 gn 58-150 Hz 35 x 15 mm, +/-0.35 mm 10-58 Hz
- Mercury Free
- yes
- Reach Regulation
- Contains SVHC above threshold
- Range Of Product
- Modicon STB distributed I/O solution
- Discrete Input Number
- 2
- Warranty
- 18 months
- Height
- 18.4 mm
- Product Compatibility
- I/O base STBXBA2000, power distribution module STBPDT2100/2105
- Kit Composition
- STBXTS1110 5-terminal screw connector, STBXTS2110 5-terminal spring clamp connector, STBXBA2000 base, STBDAI5260 module
Input Voltage Limits0...20 V at state 0, 74...132 V at state 1
Absolute Maximum Voltage200 V 20 ms
Network Frequency Limits47-63 Hz
Current State 1 Guaranteed>= 4 mA
Response Time1.5 ms off-to-on, 1.5 ms on-to-off
Insulation Between Channels1780 V for 1 minute
Cold Swappingyes
Rated Supply Voltage115/230 V AC
MarkingCE
Status LEDs1 green module status (RDY), 1 green per channel (IN1 to IN2), 1 red module error (ERR)
Net Weight0.065 kg (0.14 lb)
Product CertificationsFM Class 1 Division 2, UL, CSA
Operating Altitude<= 2000 m (6561.68 ft)
Ambient Air Temperature for Operation0...60 °C (32...140 °F) without derating
Relative Humidity95% at 60 °C (140 °F) without condensation
Shock Resistance30 gn 11 ms IEC 88 reference 2-27
RoHS ExemptionYes
China RoHS RegulationX
Product Typestandard digital input kit
Discrete Input Voltage TypeAC
Width125 mm
Depth65.1 mm
Supplypower distribution module
