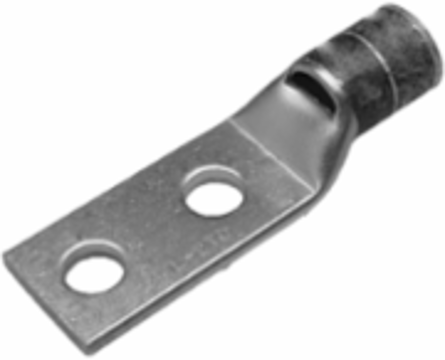

Burndy YA25L2TC38 HYLUGTM Copper Compression Terminal, 1/0 AWG, 2 Hole, 3/8 Inch Stud
- MPN: YA25L2TC38
- UPC: 781810503621
- PPN: BUR-50221H
CAD
$24.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression lug, 2 Hole w/ Inspection Window, 1/0 AWG, 3/8" Stud, 1" Stud Hole Spacing, Short Barrel, Tin Plated.
Documentation & Downloads
Specifications
Dimensions
- Bolt Size
- 3/8 in
- Dimension - B Length inch
- 0.88 in
- Dimension - D inch
- 1.83 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 3.10 in
- Dimension - Outside Diameter inch
- 0.51 in
- Dimension - Strip Length inch
- 15/16
- Dimension - Z inch
- 0.42 in
- Outside Diameter
- 0.51 in
Dimension - B Length fraction7/8 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Hole Size inch0.41 in
Dimension - L Length Overall mm79 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.75 in
Dimension - Stud Size inch3/8
Length3.10 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 100 (61) Navy
- Conductor - Copper Str Size
- 1/0
- Conductor - Material
- Copper
Conductor - Copper Str Navy Size Range100 (61) Navy
Conductor - Copper Str Size Range1/0
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818105036211
Color CodePink
Die Index12;348
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810503621
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
