Digital Watchdog DWC-D3263WTIR Indoor Dome Camera 2.1MP/1080p, 2.8~12mm Vari-Focal Lens, 100ft IR
- MPN: DWC-D3263WTIR
- UPC: 813379019753
- PPN: DWD-DWC-D3263WTIR
CAD
$418.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

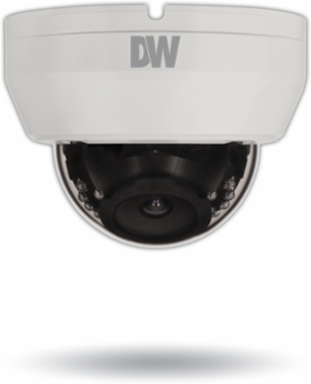

Experience superior surveillance capabilities with this advanced indoor dome camera from Digital Watchdog. Equipped with a 2.1MP/1080p image sensor and a versatile 2.8 to 12mm vari-focal p-iris lens, this camera ensures crystal-clear images in various lighting conditions, thanks to its Star-LightTM technology and true wide dynamic range (WDR). The device is designed for flexibility and ease of use, featuring programmable privacy zones, motion detection, and an intuitive icon-driven OSD menu with joystick control. With robust features like Smart DNRTM for noise reduction and a 100-foot IR distance for nighttime visibility, this camera is built to deliver reliable performance in any environment, making it an ideal choice for comprehensive indoor security solutions.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light™ super low light technology
- 2.1MP/1080p 1/3" image sensor at real-time 30fps
- 2.8~12mm varifocal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 100' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Highlight masking exposure (HME)
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable Privacy Zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- 5 year warranty
Documentation & Downloads
Specifications
Key Specifications
- Image sensor
- 2.1MP/1080p 1/3" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- Resolution
- 1920 x 1080 (1080p)
- Video output
- HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
- Focal length
- 2.8 ~ 12mm
- Field of view (FoV)
- 91 - 28°
- Shutter mode
- Auto, manual, FLC
- Backlight
- On, off
- Wide dynamic range (WDR)
- True WDR, off, on
- Dynamic range compressor (DRC)
- Off, low, middle, high
- White balance
- Auto / auto-ex / preset / manual
- Mirror / flip
- Yes
- Motion detection
- Yes
- Sharpness
- 0 ~ 10
- De-fog
- On, off
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- Other certifications
- FCC, CE, ROHS
- Material
- Plastic indoor housing, polycarbonate dome
- Weight
- 0.5lbs (0.226kg)
Active pixels1944 (H) x 1092 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
Alarm output1 alarm output
Lens typeVarifocal p-iris lens
IR distance100ft range
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off, x2 – x32
Wide dynamic range (WDR) dB100dB
Smart DNR™ 3D digital noise reductionOff, low, middle, high
Day / nightAuto, day (color), night (B/W)
Auto gain control0~10
Privacy zones16 programmable privacy zones
Gamma0.45 ~ 0.75
RS485 / UTP built-inPelco D / Pelco C
Operating humidity10–90% RH (non–condensing)
Power requirementDC12V/AC24V dual voltage
Dimensions4.72" x 3.52" (120 x 89.4 mm)
