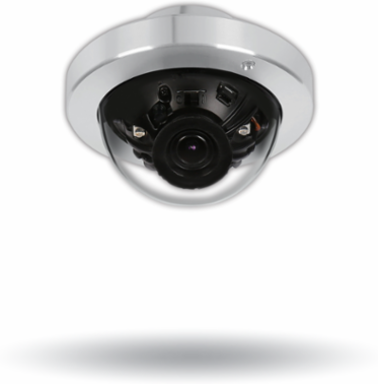

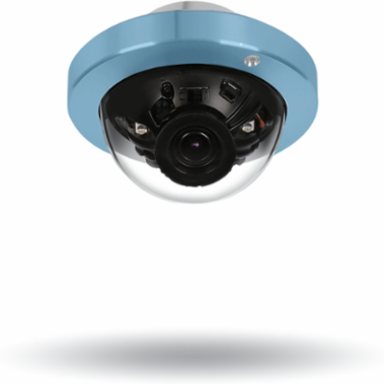

Digital Watchdog DWC-MC553WTIR 5MP Micro Dome Camera with 4.0mm Lens, IP66, Smart IR, WDR, NDAA Compliant

  • MPN: DWC-MC553WTIR
  • UPC: 812226030149
  • PPN: DWD-DWC-MC553WTIR

CAD

$386.07

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Experience advanced surveillance capabilities with the Star-Light Plus™ UHDoC® 5MP micro dome camera from Digital Watchdog. This compact yet powerful device features a 4.0mm fixed lens and is equipped with Smart DNR™ 3D digital noise reduction technology, ensuring clear and detailed images even in challenging lighting conditions. With an impressive resolution of 2592 x 1944, true wide dynamic range (WDR), and an IR distance of up to 50 feet, this camera excels in both day and night environments, providing reliable performance in various conditions. Designed for durability, the camera boasts an IP66 rating for dust and water resistance, alongside an IK 9-rated impact-resistant housing, making it suitable for outdoor use. Its programmable privacy zones and easy-to-use OSD control enhance its functionality, while the included color trim rings allow for aesthetic customization. Whether you're looking to secure a commercial space or enhance your home security system, this micro dome camera delivers exceptional quality and versatility.

Features

  • Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
  • Star-Light Plus™ color in near-total darkness technology
  • 1/2.8" image sensor
  • 5MP at 20fps, 4MP at real-time 30fps
  • 4.0mm fixed lens
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • 50' Smart IR™ with intelligent camera sync.
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • De-Fog™ extreme weather image compensation
  • Easy icon-driven OSD menu with built-in joystick
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • NDAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • IK 9-rated impact-resistant

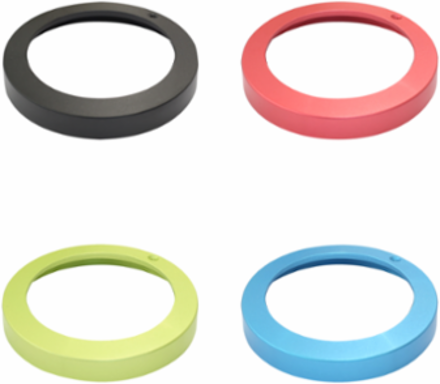

  • Color trim rings available - Solid black and solid white included and decorator colors red, green or blue are sold separately
  • 5 year warranty

Documentation & Downloads

Specifications

ENVIRONMENTAL

Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
IP rating
IP66 environmental-rated dust-tight and water-resistant
Other certifications
FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK 9-rated impact-resistant

MECHANICAL

Material
Aluminum vandal housing, polycarbonate micro dome
Weight
0.56 lbs (0.25kg)
Dimensions3.14" x 2.34" (80 x 59.5mm; )

ELECTRICAL

Power requirement
DC12V only

OPERATIONAL

Shutter mode
Auto
Backlight
Yes
Wide dynamic range (WDR)
True WDR, off, on
Smart DNR™ 3D digital noise reduction
3D/2D DNR
Day / night
Auto, day (color), night (B/W)
Auto gain control
Max 72dB
Privacy zones
Yes
Gamma
0.45
RS485 / UTP built-in
UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off – x32
Wide dynamic range (WDR) dB120dB
White balanceYes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes

LENS

Focal length
4.0mm
Field of view (FoV)
82°
Lens typeFixed lens
IR distance50ft range


Image sensor
5MP 1/2.8" CMOS
Scanning system
Progressive scan
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
Resolution
2592 x 1944 (5MP)
Video output
HD-Analog and HD-TVI - 5MP/1944p @ 20fps and 12.5fps; HD-Analog, HD-TVI and HD-CVI - 4MP/1440p @ 30fps
Active pixels2608 (H) x 1960 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
