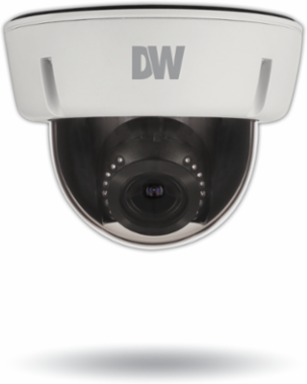

Digital Watchdog DWC-V6563WTIR 5MP Vandal Dome Camera with 2.7~13.5mm Lens, IP66, IK10 Rated
- MPN: DWC-V6563WTIR
- UPC: 812226030132
- PPN: DWD-DWC-V6563WTIR
CAD
$480.33
/ EA
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm vari-focal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- CleanView™ hydrophobic dome coating repels water, dust and grease
- 100' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- 1 alarm output
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP66 environmental-rated dust-tight and water-resistant
- Other certifications
- FCC, CE, ROHS
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Weight
- 1.98 lbs (0.9kg)
ELECTRICAL
- Power requirement
- DC12V/AC24V dual voltage
OPERATIONAL
- Shutter mode
- Auto
- Backlight
- Yes
- Wide dynamic range (WDR)
- True WDR, off, on
- Smart DNR™ 3D digital noise reduction
- 3D/2D DNR
- Day / night
- Auto, day (color), night (B/W)
- Auto gain control
- Max 72dB
- Privacy zones
- Yes
- Gamma
- 0.45
- RS485 / UTP built-in
- Pelco D / UTC
I/O
- Alarm output
- 1 alarm output
LENS
- Focal length
- 2.7 ~ 13.5mm
- Field of view (FoV)
- 102 ~ 31.4
- Image sensor
- 5MP 1/2.8" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Resolution
- 2592 x 1944 (5MP)
- Video output
- HD-Analog and HD-TVI - 5MP/1944p @ 20fps and 12.5fps; HD-Analog, HD-TVI and HD-CVI - 4MP/1440p @ 30fps
