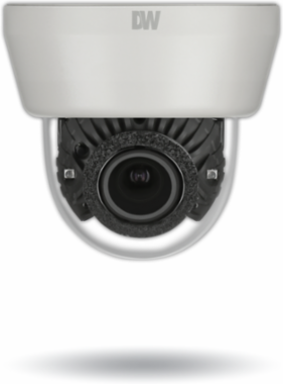

Star-LightTM 2.1MP Indoor Dome Camera, 2.8~12mm Motorized Zoom Lens
Digital Watchdog

Digital Watchdog DWC-D4283WTIR Star-LightTM 2.1MP Indoor Dome Camera, 2.8~12mm Motorized Zoom Lens

  • MPN: DWC-D4283WTIR
  • UPC: 813379019845
  • PPN: DWD-DWC-D4283WTIR

CAD

$467.21

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Experience unparalleled surveillance capabilities with the Star-LightTM UHDoC indoor dome camera from Digital Watchdog, designed to deliver exceptional image quality and advanced features. This camera boasts a 2.1MP/1080p resolution, complemented by a motorized zoom p-iris lens with a focal length of 2.8 to 12mm, allowing for precise focus adjustments and auto-focusing capabilities. Enhanced with Smart DNRTM 3D digital noise reduction and True Wide Dynamic Range (WDR) technology, it excels in various lighting conditions, ensuring clear and detailed images even in challenging environments. Equipped with a built-in microphone for audio input, this camera also offers programmable privacy zones and intelligent motion detection, making it a versatile choice for security applications. Its robust SnapitTM housing allows for easy installation, while the advanced features like De-FogTM for extreme weather conditions and 100' Smart IRTM for night vision ensure reliable performance. With a wide operating temperature range and dual voltage power requirements, this camera is built to withstand diverse environments, making it an ideal solution for both residential and commercial surveillance needs.

Features

  • Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
  • STAR-LIGHT™ Super Low Light Technology
  • 2.1MP 1/3" Image Sensor at Real-time 30fps
  • Built-in Microphone
  • 2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
  • True Wide Dynamic Range (WDR)
  • OSD Control Via Coaxial (UTC)
  • Snapit™ Easy Installation Housing
  • 100' Smart IR™ with Intelligent Camera Sync.
  • Smart DNR™ 3D Digital Noise Reduction
  • True Day/Night Mechanical IR Cut Filter
  • De-Fog™ Extreme Weather Image Compensation
  • Highlight Masking Exposure (HME)
  • Auto-Sensing 24VAC/12VDC with Line Lock
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Backlight Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • UTP Built-In
  • RS-485 Built-in
  • UL listed
  • NDAA compliant
  • 5 Year Warranty

Documentation & Downloads

Specifications

Key Specifications

Image sensor
2.1MP/1080p 1/3" CMOS
Scanning system
Progressive scan
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Resolution
1920 x 1080 (1080p)
Video output
HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
Audio input/output
1 built-in microphone
Audio frequency response
50Hz ~ 10KHz
Lens type
Motorized zoom auto-focus p-iris lens
IR distance
100ft range
Shutter speed
1/30-1/30,000
Star-Light (sense-up)
Off, x2 – x32
Wide dynamic range (WDR) dB
100dB
Smart DNR™ 3D digital noise reduction
Off, low, middle, high
Day / night
Auto, day (color), night (B/W)
Auto gain control
0~10
Privacy zones
16 programmable privacy zones
Gamma
0.45 ~ 0.75
RS485 / UTP built-in
Pelco D / Pelco C
Operating humidity
10–90% RH (non–condensing)
Power requirement
DC12V/AC24V dual voltage
Dimensions
4.24" x 3.9" (107.8 x 99.1 mm)
Active pixels1944 (H) x 1092 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
Alarm output1 alarm output
Audio sensitivity-38dB ± 2dB
Focal length2.8 ~ 12mm
Field of view (FoV)91 - 28°
Shutter modeAuto, manual, FLC
BacklightOn, off
Wide dynamic range (WDR)True WDR, off, on
Dynamic range compressor (DRC)Off, low, middle, high
White balanceAuto / auto-ex / preset / manual
Mirror / flipYes
Motion detectionYes
Sharpness0 ~ 10
De-fogOn, off
Operating temperature-40°F ~ 122°F (-40°C ~ 50°C)
Other certificationsFCC, CE, ROHS
MaterialSnapit™ plastic housing, polycarbonate dome
Weight0.529 lbs (0.24kg)
