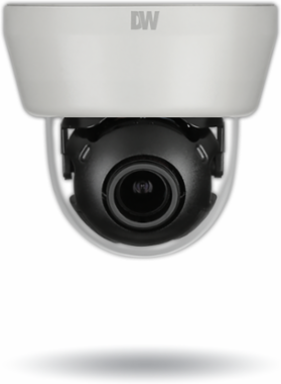

Digital Watchdog DWC-D4283WD Star-Light 2.1MP Indoor Dome Camera, 2.8~12mm Motorized Lens
- MPN: DWC-D4283WD
- UPC: 813379019821
- PPN: DWD-DWC-D4283WD
CAD
$408.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Experience unparalleled surveillance capabilities with the Star-Light™ UHDoC® indoor dome camera from Digital Watchdog. This advanced 2.1MP/1080p camera features a versatile 2.8 to 12mm motorized zoom p-iris lens, allowing for precise focus and a wide field of view ranging from 28° to 91°. Equipped with cutting-edge technologies such as True Wide Dynamic Range (WDR) and STAR-LIGHT™ Super Low Light Technology, it ensures clear and detailed images even in challenging lighting conditions, making it an ideal choice for various indoor environments.
Designed for ease of use, this camera includes a built-in microphone and programmable privacy zones, enhancing its functionality for security applications. The Snapit™ housing facilitates quick installation, while the robust construction ensures durability in a range of temperatures from -40°F to 122°F. With features like auto white balance, digital noise reduction, and a user-friendly OSD menu, this camera is engineered to meet the demands of modern surveillance systems, all while maintaining compliance with NDAA standards.
Features
- Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT™ Super Low Light Technology
- 2.1MP 1/3" Image Sensor at Real-time 30fps
- Built-in Microphone
- 2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- Snapit™ Easy Installation Housing
- De-Fog™ Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Auto-Sensing 24VAC/12VDC with Line Lock
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- UTP Built-In
- RS-485 Built-in
- UL listed
- NDAA compliant
- 5 Year Warranty
Documentation & Downloads
Specifications
Key Specifications
- Image sensor
- 2.1MP/1080p 1/3" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- Resolution
- 1920 x 1080 (1080p)
- S/N ratio
- 55dB
- Alarm output
- 1 alarm output
- Audio sensitivity
- -38dB ± 2dB
- Focal length
- 2.8 ~ 12mm
- Field of view (FoV)
- 91 - 28°
- Shutter speed
- 1/30-1/30,000
- Star-Light (sense-up)
- Off, x2 – x32
- Wide dynamic range (WDR) dB
- 100dB
- Smart DNR™ 3D digital noise reduction
- Off, low, middle, high
- Day / night
- Auto, day (color), night (B/W)
- Auto gain control
- 0~10
- Privacy zones
- 16 programmable privacy zones
- Gamma
- 0.45 ~ 0.75
- RS485 / UTP built-in
- Pelco D / Pelco C
- Operating humidity
- 10–90% RH (non–condensing)
- Power requirement
- DC12V/AC24V dual voltage
- Dimensions
- 4.24" x 3.9" (107.8 x 99.1 mm)
Active pixels1944 (H) x 1092 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
Minimum scene illumination0.3 lux (color)
Video outputHD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
Audio input/output1 built-in microphone
Audio frequency response50Hz ~ 10KHz
Lens typeMotorized zoom auto-focus p-iris lens
Shutter modeAuto, manual, FLC
BacklightOn, off
Wide dynamic range (WDR)True WDR, off, on
Dynamic range compressor (DRC)Off, low, middle, high
White balanceAuto / auto-ex / preset / manual
Mirror / flipYes
Motion detectionYes
Sharpness0 ~ 10
De-fogOn, off
Operating temperature-40°F ~ 122°F (-40°C ~ 50°C)
Other certificationsFCC, CE, ROHS
MaterialSnapit™ plastic housing, polycarbonate dome
Weight0.529 lbs (0.24kg)
