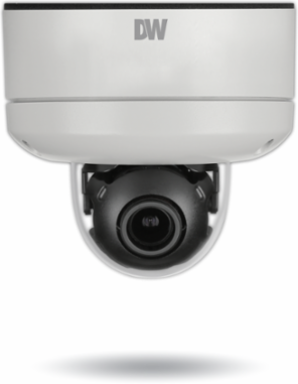

Digital Watchdog DWC-V4283WD 2.1MP Vandal Dome Camera with 2.8-12mm Lens, IP68, 30fps, IK10 Rated
- MPN: DWC-V4283WD
- UPC: 813379019838
- PPN: DWD-DWC-V4283WD
CAD
$533.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Experience unparalleled surveillance capabilities with the Star-Light™ UHDoC® vandal dome camera from Digital Watchdog. This advanced 2.1MP/1080p camera features a versatile 2.8 to 12mm vari-focal p-iris lens, equipped with motorized zoom and auto-focus, ensuring exceptional clarity and detail in any environment. With its robust IK10-rated impact resistance and IP68 certification for water and tamper resistance, this camera is designed to withstand harsh conditions while delivering superior performance, even in low-light situations thanks to STAR-LIGHT™ technology.
The camera's true wide dynamic range (WDR) and smart 3D digital noise reduction enhance image quality, making it ideal for a variety of applications. Its easy installation Snapit™ housing and user-friendly OSD menu with built-in joystick simplify setup and operation. With features such as programmable privacy zones, backlight compensation, and a wide operating temperature range, this camera is not only versatile but also reliable, making it an excellent choice for any security system.
Features
- Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT™ Super Low Light Technology
- 2.1MP 1/3" Image Sensor at Real-time 30fps
- 2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- Snapit™ Easy Installation Housing
- CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease
- Cold Start -40°F (-40°C)
- Smart DNR™ 3D Digital Noise Reduction
- De-Fog™ Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Auto-Sensing 24VAC/12VDC with Line Lock
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- UTP Built-In
- Junction Box Built-in
- RS-485 Built-in
- UL listed
- NDAA compliant
- IP68 Certified Water and Tamper Resistant
- IK-10 Impact Rated
- 5 Year Warranty
Documentation & Downloads
Specifications
Key Specifications
- Image sensor
- 2.1MP/1080p 1/3" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- Resolution
- 1920 x 1080 (1080p)
- S/N ratio
- 55dB
- Alarm output
- 1 alarm output
- Lens type
- Motorized zoom auto-focus p-iris lens
- Shutter mode
- Auto, manual, FLC
- Backlight
- On, off
- Wide dynamic range (WDR)
- True WDR, off, on
- Dynamic range compressor (DRC)
- Off, low, middle, high
- White balance
- Auto / auto-ex / preset / manual
- Mirror / flip
- Yes
- Motion detection
- Yes
- Sharpness
- 0 ~ 10
- De-fog
- On, off
- Operating temperature
- -40°F ~ 122°F (-40°C ~ 50°C)
- IP rating
- IP68 Certified Water and Tamper Resistant
- Other certifications
- FCC, CE, ROHS
- Material
- Snapit™ Aluminum Vandal Housing, Polycarbonate Dome
- Weight
- 2.05lbs (0.93kg)
Active pixels1944 (H) x 1092 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
Minimum scene illumination0.3 lux (color)
Video outputHD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
Focal length2.8 ~ 12mm
Field of view (FoV)91 - 28°
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off, x2 – x32
Wide dynamic range (WDR) dB100dB
Smart DNR™ 3D digital noise reductionOff, low, middle, high
Day / nightAuto, day (color), night (B/W)
Auto gain control0~10
Privacy zones16 programmable privacy zones
Gamma0.45 ~ 0.75
RS485 / UTP built-inPelco D / Pelco C
Operating humidity10–90% RH (non–condensing)
IK ratingIK10-rated impact resistant
Power requirementDC12V/AC24V dual voltage
Dimensions5.47" x 4.79" (139 x 121.8 mm)
