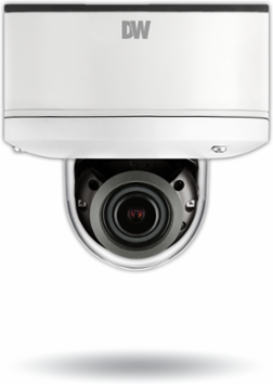

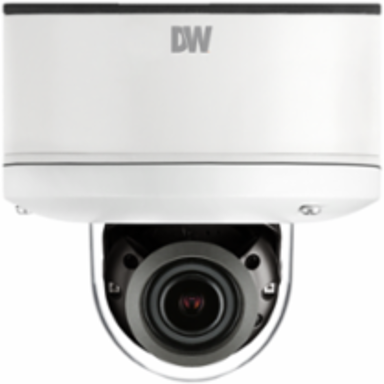

Digital Watchdog DWC-MV45WiATW MEGApix IVA 5MP Vandal Dome IP Camera, 2.7-13.5mm Vari-Focal Lens, IP68
- MPN: DWC-MV45WiATW
- UPC: 812226032532
- PPN: DWD-DWC-MV45WiATW
CAD
$1290.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Experience unparalleled surveillance capabilities with the MEGApix IVATM 5MP vandal dome Snapit IP camera from Digital Watchdog. Designed for robust performance in challenging environments, this camera features a 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus, ensuring exceptional image clarity even in near-total darkness, thanks to its advanced Star-Light PlusTM technology. With a resolution of up to 2592x1944 and the ability to stream dual video feeds at varying rates, this camera is equipped to handle diverse security needs, all while offering features like intelligent video analytics, true day/night functionality, and a durable IP68-rated housing for maximum protection against the elements. Additionally, its seamless integration with DW Spectrum IPVMS and support for ONVIF ensures compatibility with existing systems, making it an ideal choice for both residential and commercial applications.
Features
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- Cold Start -40°F (-40°C)
- 100' Smart IR™ with intelligent camera sync
- CleanView™ hydrophobic dome coating repels water, dust and grease
- Snapit™ easy installation camera
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP68 dust-tight and waterproof
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
|---|---|
| IP rating | IP68-rated |
| Other certifications | CE, FCC, RoHS |
| Operating humidity | 10–90% RH (non–condensing) |
|---|---|
| IK rating | IK10 impact-resistant |
MECHANICAL
| Material | Snapit™ aluminum vandal housing, polycarbonate dome |
|---|---|
| Warranty | 5 year warranty |
| Weight | 2.75 lbs (1.25kg) |
|---|
ELECTRICAL
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) |
|---|
| Power consumption | DC12V - max 8.3W; PoE - max 10.5W |
|---|
OPERATIONAL
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
|---|---|
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 |
| Day / night | Auto, day (color), night (B/W) |
| Wide dynamic range (WDR) | True WDR (T-WDR) |
| Privacy zones | 16 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP, alarm output activation and SD card recording |
| Shutter speed | 1/15 ~ 1/32,000 |
|---|---|
| Auto gain control | Auto |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Wide dynamic range (WDR) dB | 120dB |
| Mirror and flip | Yes |
| Memory slot | Micro SD / SDHC / SDXC (card not included) |
I/O
| Audio in / out | 1 input / 1 output |
|---|---|
| Alarm in / out | 1 input / 1 output |
| Audio compression | G.711 |
|---|
LENS
| Focal length | 2.7 ~ 13.5mm, F1.4 |
|---|---|
| Field of view (FoV) | 31° ~ 96° |
| Optical zoom | x5 optical zoom |
| Lens type | Vari-focal p-iris lens with motorized-zoom and auto-focus |
|---|---|
| IR distance | 100ft range |
NETWORK
| LAN | RJ45 (10/100Base-T) |
|---|---|
| Resolution | H.265 - 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG - 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF |
| Video bitrate | 100Kbps ~ 10Mbps, Multi-rate for Preview and Recording |
| Streaming capability | Dual-stream at different rates and resolutions |
| Protocol | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF |
| Web viewer | OS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video compression type | H.265, H.264, MJPEG |
|---|---|
| Frame rate | Up to 30fps at all resolutions |
| Bitrate control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4, IPv6 |
| ONVIF conformance | Yes |
| Video management software | DW Spectrum® IPVMS |
| Image sensor | 5MP 1/2.8” CMOS |
|---|---|
| Test Monitor Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total pixels | 2592 (H) × 1944 (V) |
|---|
