Square D 8536SAO12V06 NEMA Size 00 Non-Reversing Motor Starter, 9A, 2HP at 460VAC, 3 Pole
- MPN: 8536SAO12V06
- UPC: 785901743453
- PPN: SCH-8536SAO12V06
CAD
$718.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

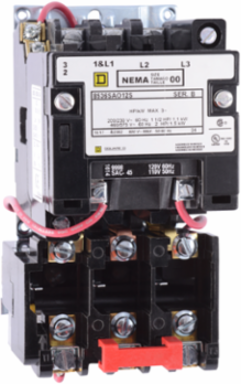

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 440/480 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
- Depth
- 107 mm
ComplianceTAA Compliant
Complementary Attributes
- Rated Power In Hp
- 1.5 HP 200 V AC, 1.5 HP 230 V AC, 2 HP 460 V AC, 2 HP 575 V AC
- Line Rated Current
- 9 A
Control Circuitcommon control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Listed, CSA, NEMA
- Carbon Footprint Of The Distribution Phase [A4]
- 1.5175689353917419, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1975616521492138, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 86 kg CO2 eq., 85.99422016245423
- Local Publishable Date
- 2025-11-19
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Control Circuit
- common control circuit
- Electrical Connection
- screw clamp terminals
- Local Signalling
- without pilot light
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- S
- Software Version
- v6.2.4
- Thermal Overload Type
- melting alloy 3
- Pep Code
- ENVPEP2506062EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 172 mm
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 1.828 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
[Uc] Control Circuit Voltage440 V AC 50 Hz, 480 V AC 60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.163124475832403
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 13.046747440613064
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typeno control units
Energy Efficiency OptimizedFalse
Motor Starter Typenon reversing
Phase3 phase
Product Or Component Typemotor starter
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint104 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionWhen a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %73
Width Nominal89 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2506062EN
- Nema Degree Of Protection
- not rated (open device)
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint103.91922266644065
Eu Rohs DirectiveCompliant
Nema Size00
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2506062EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 3 phase
- Range Of Product
- S
Product Or Component Typemotor starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
