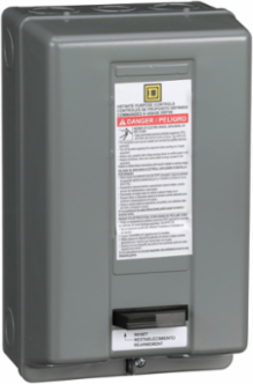

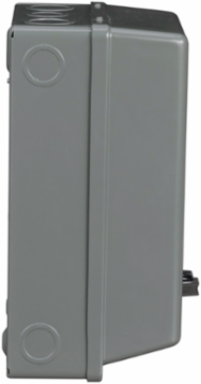

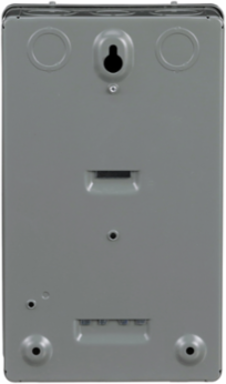

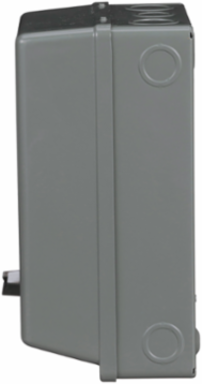

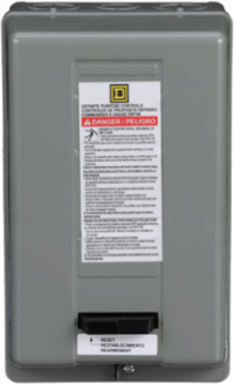

Square D 8911DPSG43V07 Definite Purpose Starter 40A 3 Pole 3 Phase 600V AC NEMA 1
- MPN: 8911DPSG43V07
- UPC: 785901001508
- PPN: SCH-8911DPSG43V07
CAD
$481.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This definitive purpose starter from Schneider Electric is engineered for efficient control in demanding industrial applications. With a robust design that supports three-phase operation at a voltage of up to 600V AC, it provides reliable performance for various motor types. The 40A capacity ensures that it can handle substantial current loads, making it suitable for a wide range of machinery. Built to enhance automation and control in industrial environments, this model stands out for its durability and operational efficiency within the NEMA 1 enclosure. Whether you’re looking to streamline motor activation or improve system reliability, this starter is a key component for your control systems.
Documentation & Downloads
Specifications
Additional
- Amperage
- 40 A
- Rated Operational Voltage
- 600 V AC
- Horsepower Rating
- 3 Hp 115 V AC 1 phase, 10 Hp 230 V AC 3 phases, 7.5 Hp 230 V AC 1 phase, 20 Hp 460 V AC 3 phases, 25 Hp 575 V AC 3 phases
- Number of Poles
- 3
- Number of Thermal Units
- 3
- Enclosure Rating
- NEMA 1
- Country of Origin
- China
Locked Rotor Current240 A at 230 V AC, 200 A at 460 V AC, 160 A at 575 V AC
Control Circuit Voltage550 V AC 50 Hz, 600 V AC 60 Hz
Thermal Overload TypeMelting alloy
Phase3 phases
Enclosure MaterialPainted sheet steel
RoHS ComplianceCompliant with Exemptions
