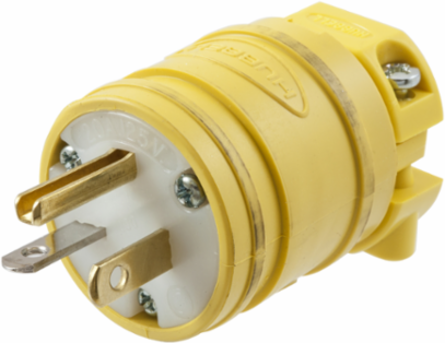

Hubbell Wiring Device-Kellems HBL1433 Elasto-Grip Dust Tight Male Plug, 20A 125V, 2-Pole 3-Wire, Yellow
- MPN: HBL1433
- UPC: 783585013336
- PPN: HBL-HBL1433
- UNSPSC: 39121402
CAD
$55.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Male Plug, Elasto-Grip Dust Tight, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 125V, 5-20P, Yellow, Single Pack.
Features
- Thermoplastic elastomer housing
- Dust and moisture seal around cord
Documentation & Downloads
Specifications
Key Specifications
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
|---|---|
| Country of Origin | United States |
| Dimensions | 2.19 in x 2.19 in x 1.55 in |
| Horsepower - Maximum | 0.50 |
| Length | 2.19 in |
| Amperage Rating | 20 A |
| Color | Yellow |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Standard | CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 |
| Voltage Rating | 125 VAC |
| Voltage Rating Description | 125 V |
| Width | 2.19 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | 5-20P |
| Number Of Wires | 3-Wire |
| Style | Standard |
| Description - Invoice | ELASTOGRIP PLUG, 20A 125V, 5-20P |
| Harmonization Code | 8536699902 |
| MSDS Flag | No |
| Sub Class Code | A04A010 |
| Current Rating | 20 A |
| Series | Elastogrip |
| BOX SIZE | 3.700x10.000x4.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585013336 |
| Case - Total Units | 50 EA |
| Pallet Height | 50.900 in |
| Pallet Weight | 821.200 lb. |
| NAICS Code | 335931A102 |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
|---|---|
| Current / Amperage Rating | 20 A |
| Height | 1.55 in |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Application | Industrial/Commercial Grade |
| NEMA Rating | 5-20P |
| Number of Wires | 3-Wire |
| Size | 2.19 in x 2.19 in x 1.55 in |
| Type | Plug |
| Wire Size | #18 AWG to #12 AWG |
| Weight | 0.15 lb. |
| Connectivity | Screw Terminals |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 1433 |
| Material - Mounting Hardware | Cord Mounted |
| Material | Polycarbonate |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.900 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 10.850 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
