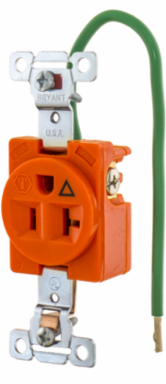

Bryant 5361IG Commercial Grade Isolated Ground Receptacle, 20A 125V, 2-Pole, 3-Wire, Orange
- MPN: 5361IG
- UPC: 781786625488
- PPN: HBL-5361IG
- UNSPSC: 39121406
CAD
$84.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Single, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, Isolated Ground, 20A 125V, 5-20R, Orange, Single Pack
Features
- Single
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- Isolated Ground
- 20A 125V
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.38 in x 0.91 in
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Orange
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.38 in x 0.91 in
- Type
- Single Receptacle
- Wattage
- 2500
- Voltage Rating Description
- 125 V
- Width
- 1.38 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Finder Groove Face
- Description - Invoice
- SGL RCPT, IG, IND GRD, 20A 125V,5-20R,OR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.550 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 17.800 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height0.91 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesIsolated Ground
Voltage Rating125 V
Wire Size#14 AWG to #12 AWG
Weight0.1 lb.
ConnectivityBack and Side Wired
Nema Rating5-20R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A060
Current Rating20 A
SeriesStraight Blade
BOX SIZE3.100x8.700x5.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786625488
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
