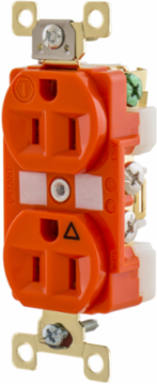

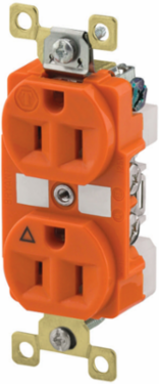

Bryant BRY5262IG Commercial Grade Duplex Receptacle, 15A 125V, 2-Pole 3-Wire, Orange, 3.28 x 1.54 x 1.16 Inch
- MPN: BRY5262IG
- UPC: 781786005105
- PPN: HBL-BRY5262IG
- UNSPSC: 39121406
CAD
$47.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Orange, Single Pack, IsolatedGround
Features
- Duplex
- Commercial/Industrial Grade
- 15A 125V
- 2-Pole 3-Wire Grounding
- 5-15R
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Special Features
- Isolated Ground
- Color
- Orange
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Length
- 3.28 in
- Voltage Rating
- 125 V
- Weight
- 0.25 lb.
- Amperage Rating
- 15 A
- Connectivity
- Back and Side Wired
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number Of Poles
- 2-Pole
- Phase
- Single Phase
- Type
- Duplex Receptacle
- Wire Size
- #14 AWG to #12 AWG
- Description - Invoice
- DUP RCPT, IG IND GRD, 15A 125V, 5-15R,OR
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A04A060
- Current Rating
- 15 A
- Series
- Straight Blade
- BOX SIZE
- 2.900x8.500x5.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786005105
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70781786005104
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Number of Poles2-Pole
Size3.28 in x 1.54 in x 1.16 in
Country of OriginChina
Current / Amperage Rating15 A
Height1.16 in
Standards - RoHS Compliance StatusCM
Voltage Rating Description125 V
Width1.54 in
ApplicationExtra Heavy Duty Industrial Specification Grade
Display SizeStandard Sized Product
Nema Rating5-15R
Number Of Wires3-Wire
StyleFinder Groove Face
Wattage1875
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5262IG
Material - Mounting HardwareScrew Mounting
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.4 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight23.800 lb.
Lowest Level UOMEach
Pallet Height45.000 in
Pallet Weight1309.000 lb.
Certifications
- EU RoHS Indicator
- Yes
