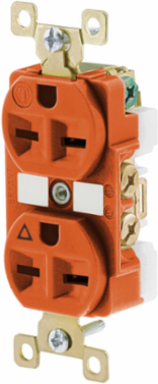

Bryant BRY5662IG Duplex Receptacle, 15A 250V, 2-Pole 3-Wire, Isolated Ground, Orange
- MPN: BRY5662IG
- UPC: 781786005532
- PPN: HBL-BRY5662IG
- UNSPSC: 39121406
CAD
$86.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 15A 250V, 2-Pole 3-Wire Grounding, 6-15R, Orange, Single Pack, Isolated Ground
Features
- Duplex
- Commercial/Industrial Grade
- 15A 250V
- 2-Pole 3-Wire Grounding
- 6-15R
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- NEMA Rating
- 6-15R
- Number of Wires
- 3-Wire
- Special Features
- Isolated Ground
- Color
- Orange
- Dimensions
- 3.28 in x 1.54 in x 1.16 in
- Length
- 3.28 in
- Voltage Rating Description
- 250 V
- Width
- 1.54 in
- Application
- Extra Heavy Duty Industrial Specification Grade
- Display Size
- Standard Sized Product
- Nema Rating
- 6-15R
- Number Of Wires
- 3-Wire
- Style
- Finder Groove Face
- Wattage
- 3750
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A020
- Current Rating
- 15 A
- Series
- Extra Heavy Duty
- BOX SIZE
- 2.900x8.600x5.200 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786005532
- Case Weight
- 20.000 lb.
- Lowest Level UOM
- Each
Number of Poles2-Pole
Size3.28 in x 1.54 in x 1.16 in
Country of OriginChina
Current / Amperage Rating15 A
Height1.16 in
Voltage Rating125 V
Weight0.2 lb.
Amperage Rating15 A
ConnectivityBack and Side Wired
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number Of Poles2-Pole
PhaseSingle Phase
TypeDuplex Receptacle
Wire Size#14 AWG to #12 AWG
Description - InvoiceDUP RCPT, IG IND GRD, 15A 250V, 6-15R,OR
Harmonization Code8536690200
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
