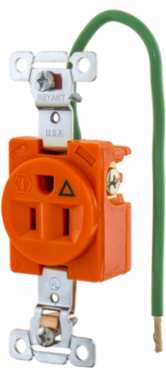

Bryant 5261IG Isolated Ground Receptacle, 15A 125V, 2-Pole 3-Wire, Orange, Size 3.28x1.38x0.91 Inch
- MPN: 5261IG
- UPC: 781786624962
- PPN: HBL-5261IG
- UNSPSC: 39121406
CAD
$80.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Single, Commercial/Industrial Grade, Isolated Ground, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Orange, Single Pack
Features
- Single
- Commercial/Industrial Grade
- Isolated Ground
- 2-Pole 3-Wire Grounding
- 15A 125V
Documentation & Downloads
Specifications
Key Specifications
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Special Features
- Isolated Ground
- Color
- Orange
- Dimensions
- 3.28 in x 1.38 in x 0.91 in
- Length
- 3.28 in
- Voltage Rating
- 125 V
- Weight
- 0.1 lb.
- Amperage Rating
- 15 A
- Connectivity
- Back and Side Wired
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number Of Poles
- 2-Pole
- Phase
- Single Phase
- Type
- Single Receptacle
- Wire Size
- #14 AWG to #12 AWG
- Description - Invoice
- SGL IG RCPT, IND GRD, 15A 125V, 5-15R,OR
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.700 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 17.550 lb.
- Lowest Level UOM
- Each
Number of Poles2-Pole
Size3.28 in x 1.38 in x 0.91 in
Country of OriginUnited States
Current / Amperage Rating15 A
Height0.91 in
Standards - RoHS Compliance StatusCM
Voltage Rating Description125 V
Width1.38 in
ApplicationExtra Heavy Duty Industrial Specification Grade
Display SizeStandard Sized Product
Nema Rating5-15R
Number Of Wires3-Wire
StyleFinder Groove Face
Wattage1875
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A060
Current Rating15 A
SeriesStraight Blade
BOX SIZE3.000x8.500x5.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786624962
Case - Total Units100 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
