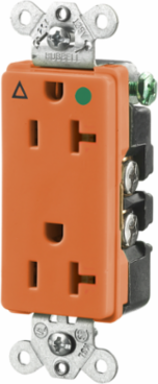

Hubbell Wiring Device-Kellems IG2182 Hospital Grade Isolated Ground Duplex Receptacle, 20A 125V, 3.28 Inch x 1.36 Inch x 1.03 Inch
- MPN: IG2182
- UPC: 783585844497
- PPN: HBL-IG2182
- UNSPSC: 39121406
CAD
$97.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Duplex Receptacle, Hospital/Decorator Grade, Isolated Ground, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R
Features
- Triangle marking on face indicates isolated ground
- Aesthetic Style Line® decorator design
- High impact resistant face
- Triple wipe contacts
- Isolated Ground
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 2-Pole
- NEMA Rating
- 5-20R
- Operating Temperature Range
- -40°C to 75°C
- Terminal Wire Size Range
- #12 AWG to #10 AWG copper wire
- Weight
- 0.2 lb.
- Material
- Nylon
- Standards and Compliance
- UL Listed UL498 E2186, CSA 22.2 No. 42, Fed. Spec. WC596, NEMA WD-6 Compliant, RoHS Compliant
- Country of Origin
- PR
Voltage125 V
Number of Wires3-Wire
Wattage2500 W
Dielectric Strength2000 V
Dimensions3.28 in x 1.36 in x 1.03 in
StyleStyle Line Decorator Hospital Grade
Special FeaturesIsolated Ground
ColorOrange
