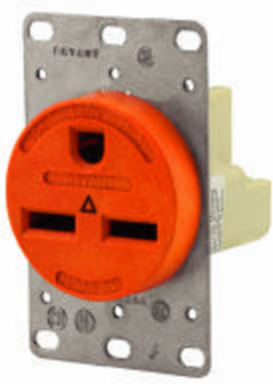

Bryant 9630IG Commercial Grade Flush Mount Receptacle, 30A 250V, 2-Pole 3-Wire, Isolated Ground, Orange
- MPN: 9630IG
- UPC: 781786731080
- PPN: HBL-9630IG
- UNSPSC: 39121406
CAD
$121.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Flush Mount Single, Commercial/Industrial Grade, Reinforced Thermoplastic Polyester, 30A 250V, 2-Pole 3-Wire Grounding, 6-30R, Orange, Single Pack, Isolated Ground
Features
- Flush Mount Single
- Commercial/Industrial Grade
- Reinforced Thermoplastic Polyester
- 30A 250V
- 2-Pole 3-Wire Grounding
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.418 in
- Amperage Rating
- 30 A
- Color
- Orange
- NEMA Rating
- 6-30R
- Number of Wires
- 3-Wire
- Special Features
- Isolated Ground
- Type
- Single Receptacle
- Wattage
- 7500
- Voltage Rating Description
- 250 V
- General Literature Asset 1 Display Text
- General Literature - Heavy Duty Straight Blade
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Extra Heavy Duty
- Description - Invoice
- RCPT, IG, 30A 250V, 6-30R
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Industry Standard(s)WR Rating
ApplicationIndustrial Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
StandardWR Rating
Voltage Rating250 V
Wire Size#10 AWG to #6 AWG
Weight0.35 lb.
ConnectivityPressure Terminal Screws
Nema Rating6-30R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A080
Current Rating30 A
SeriesStraight Blade
BOX SIZE5.625x13.125x13.125 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack781786731080
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
