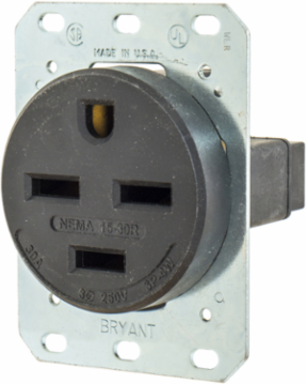

Bryant 8430FR Industrial Grade 30A 3-Phase 250V AC Single Receptacle, 3-Pole 4-Wire, 15-30R, Black
- MPN: 8430FR
- UPC: 781786673854
- PPN: HBL-8430FR
- UNSPSC: 39121406
CAD
$175.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Flush Mount Single, Industrial Grade, 30A 3 Phase 250V AC, 3-Pole 4-Wire Grounding, 15-30R, Black, Single Pack
Features
- Flush Mount Single
- Industrial Grade
- 30A 3 Phase 250V AC
- 3-Pole 4-Wire Grounding
- 15-30R
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.68 in x 2.25 in x 2.12 in
- Industry Standard(s)
- WR Rating
- Amperage Rating
- 30 A
- Color
- Black
- NEMA Rating
- 15-30R
- Number of Wires
- 4-Wire
- Size
- 3.68 in x 2.25 in x 2.12 in
- Standard
- WR Rating
- Voltage Rating
- 250 V
- Wire Size
- #10 AWG to #6 AWG
- Weight
- 0.65 lb.
- General Literature Asset 1 Display Text
- General Literature - Heavy Duty Straight Blade
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Smooth Face
- Description - Invoice
- RCPT, 30A 3PH 250V, 15-30R, BK
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Heavy Duty
- BOX SIZE
- 4.600x17.500x8.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786673854
- Case Weight
- 7.100 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.000 in
- Pallet Weight
- 852.000 lb.
Current / Amperage Rating30 A
Height2.12 in
Length3.68 in
ApplicationIndustrial Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles3-Pole
PhaseThree Phase
Special FeaturesStandard Product
TypeSingle Receptacle
Wattage3750
Voltage Rating Description250 V
Width2.25 in
ConnectivityPressure Terminal Screws
Nema Rating15-30R
Number Of Wires4-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A080
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.25 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70781786673853
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
