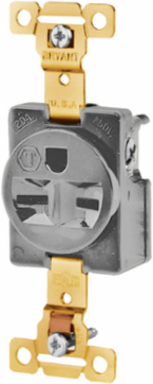

Bryant 5661GRY Commercial Grade 2-Pole 3-Wire Grounding Receptacle, 15A 250V, 3.28 Inch x 1.38 Inch x 0.91 Inch, Gray
- MPN: 5661GRY
- UPC: 781786663534
- PPN: HBL-5661GRY
- UNSPSC: 39121406
CAD
$60.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Single, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Gray, Single Pack
Features
- Single
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- 15A 250V
- 6-15R
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.38 in x 0.91 in
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Gray
- NEMA Rating
- 6-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.38 in x 0.91 in
- Type
- Single Receptacle
- Wattage
- 3750
- Voltage Rating Description
- 250 V
- Width
- 1.38 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Style
- Finder Groove Face
- Description - Invoice
- SGL RCPT, IND GRD,15A 250V, 6-15R, GY
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Extra Heavy Duty
- BOX SIZE
- 2.548x8.418x4.918 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786663534
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Height0.91 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial Specification Grade
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating250 V
Wire Size#14 AWG to #12 AWG
Weight0.1 lb.
ConnectivityBack and Side Wired
Nema Rating6-15R
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A020
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.550 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
