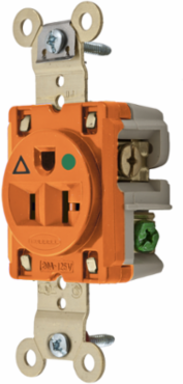

Hubbell Wiring Device-Kellems IG8310 Hospital Grade Isolated Ground Receptacle, 20A 125V, 2-Pole, 3-Wire
- MPN: IG8310
- UPC: 783585879109
- PPN: HBL-IG8310
- UNSPSC: 39121406
CAD
$114.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Receptacle, Single, Isolated Ground, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R
Features
- Triangle marking on face indicates isolated ground
- Patented bypass contact design
- Isolated Ground
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 3.28 in x 1.63 in x 1.19 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.63 in x 1.19 in
- Standard
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 V
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.2 lb.
- Engineering Drawing 1 Display Text
- IG8310 AutoCAD Drawing
- General Literature Asset 2 Display Text
- EdgeConnect™ Technology FAQ
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A040
- Current Rating
- 20 A
- Series
- Extra Heavy Duty Hospital Grade
- BOX SIZE
- 3.300x9.300x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585879109
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height1.19 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating20 A
ColorOrange
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesIsolated Ground
TypeSingle Receptacle
Wattage2500 W
Voltage Rating Description125 V
Width1.63 in
General Literature Asset 1 Display TextDuct Products Guide
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-20R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceSGL RCPT, IG, HG, 20A 125V, 5-20R, OR
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.35 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.000 lb.
Lowest Level UOMEach
