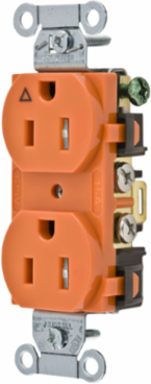

Hubbell Wiring Device-Kellems IG5252TR Tamper-Resistant Duplex Receptacle, Isolated Ground, 15A, 125V, 2-Pole, Nylon
- MPN: IG5252TR
- UPC: 783585540016
- PPN: HBL-IG5252TR
- UNSPSC: 39121406
CAD
$34.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Tamper Resistant Duplex Receptacle, Isolated Ground, Commercial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Back and Side Wired
Features
- Triangle marking on face indicates isolated ground
- Slender/compact design
- Smooth Face
- Isolated Ground and Tamper Resistant
Specifications
Additional
| Amperage | 15 A |
|---|---|
| Number of Poles | 2-Pole |
| Weight | 0.25 lb. |
| Material | Nylon |
| Wire Size | #14 AWG to #10 AWG copper stranded or solid conductor |
| Flammability Rating | UL 94 V-2 |
| NEMA Rating | 5-15R |
| Color | Orange |
| Voltage | 125 V |
|---|---|
| Size | 3.28 in x 1.57 in x 1.07 in |
| Mounting Type | Back and Side Wired Screw Terminals |
| Grounding | Isolated Ground |
| Dielectric Voltage | 2,000 V minimum |
| Operating Temperature | -40 C to 75 C |
| Standards | UL Listed, CSA Certified, Fed. Spec. W-C-596, NEMA WD-6 Compliant |
| Country of Origin | CN |
