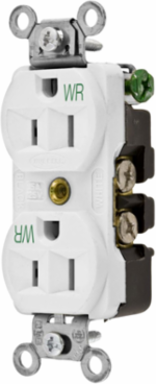

Hubbell Wiring Device-Kellems 5262WWR Weather Resistant Duplex Receptacle, 15A 125V, 2-Pole, 3-Wire, White
Hubbell Wiring Device-Kellems 5262WWR Weather Resistant Duplex Receptacle, 15A 125V, 2-Pole, 3-Wire, White
- MPN: 5262WWR
- UPC: 783585358598
- PPN: HBL-5262WWR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$15.88/ EA
Description
Straight Blade Devices, Weather Resistant Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White
Features
- Weather-resistance complies with national electrical code requirements
- Finder Groove Face
- Triple wipe contacts
- Compact design
- Self Grounding
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 3.28 in x 1.41 in x 1.09 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- White
- Environmental Conditions
- Weather Resistant
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.41 in x 1.09 in
- Standard
- UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
- Type
- Weather Resistant Duplex
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.41 in
- Connectivity
- Back and Side Wired
- Mounting Type
- Screw Mount
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A022
- Current Rating
- 15 A
- Series
- Hubbell-PRO
- BOX SIZE
- 2.000x7.600x4.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585358598
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Height1.09 in
Industry Standard(s)UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationHubbell-Pro Heavy Duty
Dielectric StrengthWithstands 2,000V minimum
MountingScrew Mount
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesSelf Grounding
Temperature RatingMaximum continuous 75°C; minimum -40°C (w/o impact)
Voltage Rating125 V
Wire Size#14 AWG to #10 AWG
Weight0.2 lb.
General Literature Asset 1 Display TextEdgeConnect™ Technology FAQ
Display SizeStandard Sized Product
Nema Rating5-15R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceHUBBELL PRO WR RECPT, DUP, 15A 125V, WH
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic/Composite
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.95 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight20.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
