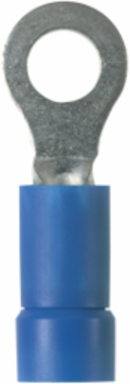

Panduit EV14-8RB-Q StrongHold™ EV14-8RB-Q Ring Terminal, Blue, Vinyl, 3/20" Stud, 16-14 AWG, PK25
- MPN: EV14-8RB-Q
- UPC: 613056367319
- PPN: PAN-EV14-8RB-Q
- UNSPSC: 39121409
CAD
$0.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
StrongHold EV14-8RB-Q Contractor Grade Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The ring tongue design assures a secure connection in high vibration applications. Accommodates 16-14 AWG, compatible with #8 Stud (M4), are blue in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Segment | IEI |
| Tongue Thickness (In.) | 0.03 |
| Stud Hole Size (In.) | #8 |
| Minimum Operating Temperature (°C) | 105 |
| Maximum Voltage (V) | 600 |
| Wire Strip Length (In.) | 5/16 |
| Stud Hole Size (mm) | 4.1 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°F) | 221 |
| For Use With | CT-100A, CT-200, CT-600A (CT-570CH), CT-1570, CT-2500 (CT-2570CH), CT-160, CT-260 |
| Overall Length (In.) | 0.92 |
| Insulation Diameter (mm) | 4.3 |
| Barrel Type | Funnel Entry |
| Color Code | Blue |
| Tongue Length (In.) | 0.46 |
| Tongue Length (mm) | 11.7 |
| Barrel Length (In.) | 0.38 |
| Outer Diameter (mm) | 7.9 |
| Tongue Width (mm) | 7.9 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Product Type | Ring Terminal |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Overall Length (mm) | 23.4 |
| Copper Conductor Size | 16-14 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Finish/Coating | Tin-Plated |
| Insulation Diameter (In.) | 0.17 |
| Sub Brand | StrongHold™ |
| Minimum Operating Temperature (°F) | 221 |
| Packaging Type | Bag |
| Flammability Rating | UL 587 H |
| Base Material | Copper |
| Maximum Voltage (kV) | 0.6 |
| Minimum Wire Insulation Diameter (mm) | 4.3 |
| Tongue Thickness (mm) | 0.8 |
| Outer Diameter (In.) | 0.31 |
| Seam Type | Butted |
| Barrel Length (mm) | 9.6 |
| Minimum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Operating Temperature (°C) | 105 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Tongue Width (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
| Overall Width (In.) | 0.31 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Overall Width (mm) | 7.9 |
| Wire Size | 16-14 AWG |
Packaging Details
| UPC | 61305636731 |
|---|---|
| Standard Package Volume Ft3 | 0.0103 |
| Std Package Height In | .65 |
| Std Package Length In | 4.55 |
| Std Package Width In | 2.75 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 25 |
| Standard Carton Volume Ft3 | 0.1031 |
| Std Carton Height In | 4.35 |
| Std Carton Length In | 9.1 |
| Std Carton Width In | 4.4 |
| Std Ctn Qty | 250 |
| EAN | 00613056367319 |
| Mercury Content Indicator | N |
| Min Order Qty | 250.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
| GTIN Package | 00613056367319 |
|---|---|
| Standard Package Weight Pounds | 0.0500 |
| Std Package Height MM | 16.51 |
| Std Package Length MM | 115.57 |
| Std Package Width MM | 69.85 |
| UOM EA PK | PK |
| GTIN Carton | 50613056367314 |
| Standard Carton Weight Pounds | 0.5000 |
| Std Carton Height MM | 110.49 |
| Std Carton Length MM | 231.14 |
| Std Carton Width MM | 111.76 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
