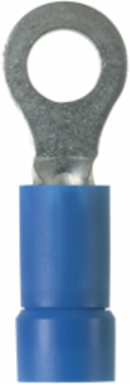

Panduit EV14-6RB-Q StrongHold™ EV14-6RB-Q Ring Terminal, Blue, Vinyl, 11/100" Stud, 16-14 AWG, PK25
- MPN: EV14-6RB-Q
- UPC: 613056367289
- PPN: PAN-EV14-6RB-Q
- UNSPSC: 39121409
CAD
$0.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold EV14-6RB-Q Contractor Grade Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The ring tongue design assures a secure connection in high vibration applications. Accommodates 16-14 AWG, compatible with #6 (M3.5), are blue in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Minimum Operating Temperature (°F)
- 221
- Base Material
- Copper
- Tongue Width (In.)
- 0.31
- Overall Length (mm)
- 23.4
- Maximum Operating Temperature (°C)
- 105
- Overall Width (In.)
- 0.31
- Stud Hole Size (mm)
- 3.5
- Packaging Type
- Bag
- Wire Strip Length (mm)
- 7.9
- Outer Diameter (In.)
- 0.31
- Wire Strip Length (In.)
- 5/16
- Overall Length (In.)
- 0.92
- Minimum Wire Insulation Diameter (mm)
- 3.8
- Outer Diameter (mm)
- 7.9
- Insulation Diameter (mm)
- 4.3
- Maximum Voltage (V)
- 600
- Tongue Thickness (mm)
- 0.8
- Minimum Wire Insulation Diameter (In.)
- 0.15
- Maximum Voltage (kV)
- 0.6
- Maximum Metric Conductor Size (mm²)
- 2.5
- Tongue Width (mm)
- 7.9
- Tongue Length (In.)
- 0.46
- Copper Conductor Size
- 16-14 AWG
Any Reason Not to SellN
Finish/CoatingTin-Plated
Maximum Operating Temperature (°F)221
Product TypeRing Terminal
Barrel Length (In.)0.38
Sub BrandStrongHold™
For Use WithCT-100A, CT-200, CT-600A (CT-570CH), CT-1570, CT-2500 (CT-2570CH), CT-160, CT-257
Insulation MaterialVinyl
Overall Width (mm)7.9
Insulation Diameter (In.)0.17
Minimum Operating Temperature (°C)105
Minimum Metric Conductor Size (mm²)1.5
Flammability RatingUL 587 H
Barrel TypeFunnel Entry
Stud Size#6
Maximum Wire Insulation Diameter (In.)0.17
Maximum Wire Insulation Diameter (mm)4.3
Color CodeBlue
Tongue Thickness (In.)0.03
Tongue Length (mm)11.7
Barrel Length (mm)9.6
Stud Hole Size (In.)#6
Seam TypeButted
Wire Size16-14 AWG
Packaging Details
- UPC
- 61305636728
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .75
- Std Package Length In
- 4.55
- Std Package Width In
- 2.7
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.15
- Std Carton Width In
- 4.35
- Std Ctn Qty
- 250
- EAN
- 00613056367289
- Mercury Content Indicator
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00613056367289
Standard Package Weight Pounds0.0500
Std Package Height MM19.05
Std Package Length MM115.57
Std Package Width MM68.58
UOM EA PKPK
GTIN Carton50613056367284
Standard Carton Weight Pounds0.5000
Std Carton Height MM110.49
Std Carton Length MM232.41
Std Carton Width MM110.49
Min. Order UOMPiece
REACH StatusN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
