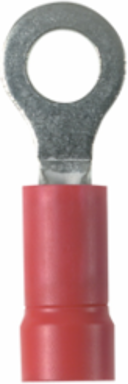

Panduit EV18-10RB-Q StrongHold™ EV18-10RB-Q Ring Terminal, Red, Vinyl, 1/5" Stud, 22-18 AWG, PK25
- MPN: EV18-10RB-Q
- UPC: 613056367371
- PPN: PAN-EV18-10RB-Q
- UNSPSC: 39121409
CAD
$0.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold EV18-10RB-M Contractor Grade Insulated Ring Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The ring tongue design assures a secure connection in high vibration applications. Accommodates 22-18 AWG, compatible with #10 Stud (M5), are red in color, and come in packages of 1,000.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Barrel Type
- Funnel Entry
- Outer Diameter (In.)
- 0.25
- Wire Strip Length (mm)
- 7.9
- Maximum Metric Conductor Size (mm²)
- 1
- Sub Brand
- StrongHold™
- Flammability Rating
- UL 587 H
- Maximum Operating Temperature (°F)
- 221
- Maximum Voltage (kV)
- 0.6
- Color Code
- Red
- Stud Hole Size (In.)
- #10
- Packaging Type
- Bag
- Finish/Coating
- Tin-Plated
- Overall Width (mm)
- 7.9
- Base Material
- Copper
- Maximum Operating Temperature (°C)
- 105
- Minimum Wire Insulation Diameter (In.)
- 0.2
- Insulation Diameter (In.)
- 0.15
- Overall Width (In.)
- 0.31
- Stud Size
- #10
- Wire Strip Length (In.)
- 5/16
- Minimum Operating Temperature (°C)
- 105
- Maximum Wire Insulation Diameter (In.)
- 0.15
- Wire Size
- 22-18 AWG
Any Reason Not to SellN
Tongue Width (mm)7.9
Minimum Wire Insulation Diameter (mm)5.1
Overall Length (In.)0.94
Tongue Thickness (mm)0.8
Barrel Length (mm)9.9
Maximum Wire Insulation Diameter (mm)3.8
Minimum Operating Temperature (°F)221
Outer Diameter (mm)6.4
Insulation Diameter (mm)3.8
Stud Hole Size (mm)4.8
Maximum Voltage (V)600
Tongue Thickness (In.)0.03
Seam TypeButted
Tongue Length (In.)0.47
Tongue Length (mm)11.9
Insulation MaterialVinyl
Barrel Length (In.)0.39
Tongue Width (In.)0.31
Minimum Metric Conductor Size (mm²)0.5
For Use WithCT-100A, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-160, CT-260, CT-402
Product TypeRing Terminal
Overall Length (mm)23.9
Copper Conductor Size22-18 AWG
Packaging Details
- UPC
- 61305636737
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .7
- Std Package Length In
- 4.55
- Std Package Width In
- 2.95
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 25
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.4
- Std Carton Length In
- 9.1
- Std Carton Width In
- 4.45
- Std Ctn Qty
- 250
- EAN
- 00613056367371
- Mercury Content Indicator
- N
- Min Order Qty
- 250.0000
- Pallet Volume
- 0.000000
- RoHS Compliant
- Compliant
GTIN Package00613056367371
Standard Package Weight Pounds0.0675
Std Package Height MM17.78
Std Package Length MM115.57
Std Package Width MM74.93
UOM EA PKPK
GTIN Carton50613056367376
Standard Carton Weight Pounds0.6750
Std Carton Height MM111.76
Std Carton Length MM231.14
Std Carton Width MM113.03
Min. Order UOMPiece
REACH StatusN
Hazardous Material FlagN
Pallet Quantity0
Pallet Weight0.0000
