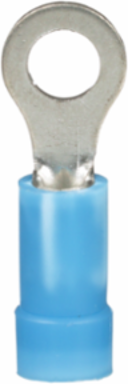

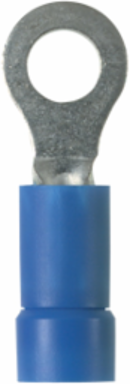

Panduit EV14-8RB-L StrongHold™ EV14-8RB-L Ring Terminal
- MPN: EV14-8RB-L
- UPC: 074983281909
- PPN: PAN-EV14-8RB-L
- UNSPSC: 39121409
CAD
$0.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
StrongHold™ Ring Terminal, vinyl insulated, 16 - 14 AWG, #8 Stud Size.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Segment
- IEI
- Seam Type
- Butted
- Stud Hole Size (mm)
- 4.1
- Tongue Length (In.)
- 0.46
- Tongue Width (mm)
- 7.9
- Minimum Metric Conductor Size (mm²)
- 1.5
- Stud Size
- #8
- Insulation Diameter (In.)
- 0.17
- Minimum Operating Temperature (°F)
- 221
- Sub Brand
- StrongHold™
- Base Material
- Copper
- Maximum Operating Temperature (°F)
- 221
- Overall Width (mm)
- 7.9
- Overall Length (mm)
- 23.4
- Tongue Thickness (mm)
- 0.8
- Maximum Voltage (kV)
- 0.6
- For Use With
- CT-100A, CT-200, CT-600A (CT-570CH), CT-1570, CT-2500 (CT-2570CH), CT-160, CT-258
- Maximum Wire Insulation Diameter (mm)
- 4.3
- Maximum Metric Conductor Size (mm²)
- 2.5
- Wire Strip Length (In.)
- 5/16
- Maximum Operating Temperature (°C)
- 105
- Tongue Length (mm)
- 11.7
- Barrel Length (mm)
- 9.6
- Copper Conductor Size
- 16-14 AWG
Any Reason Not to SellN
Wire Strip Length (mm)7.9
Product TypeRing Terminal
Barrel Length (In.)0.38
Finish/CoatingTin-Plated
Overall Length (In.)0.92
Stud Hole Size (In.)#8
Overall Width (In.)0.31
Tongue Thickness (In.)0.03
Maximum Voltage (V)600
Minimum Operating Temperature (°C)105
Color CodeBlue
Packaging TypeBag
Flammability RatingUL 587 H
Minimum Wire Insulation Diameter (mm)4.3
Outer Diameter (mm)7.9
Outer Diameter (In.)0.31
Barrel TypeFunnel Entry
Insulation Diameter (mm)4.3
Minimum Wire Insulation Diameter (In.)0.17
Insulation MaterialVinyl
Tongue Width (In.)0.31
Maximum Wire Insulation Diameter (In.)0.17
Wire Size16-14 AWG
Packaging Details
- UPC
- 07498328190
- Standard Package Volume Ft3
- 0.0103
- Std Package Height In
- .85
- Std Package Length In
- 4.55
- Std Package Width In
- 2.7
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.1031
- Std Carton Height In
- 4.35
- Std Carton Length In
- 9.15
- Std Carton Width In
- 4.4
- Std Ctn Qty
- 500
- EAN
- 00074983281909
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 0
- Pallet Weight
- 0.0000
GTIN Package00074983281909
Standard Package Weight Pounds0.1000
Std Package Height MM21.59
Std Package Length MM115.57
Std Package Width MM68.58
UOM EA PKPK
GTIN Carton50074983281904
Standard Carton Weight Pounds1.0000
Std Carton Height MM110.49
Std Carton Length MM232.41
Std Carton Width MM111.76
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
