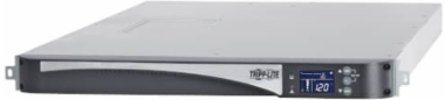

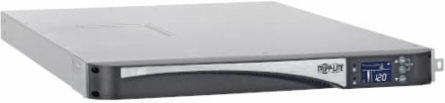

Tripp Lite SU1500LCD1U UPS, Double-Conversion Online, 1500VA, 1440W, 120V, 5 Outlets, LCD, 1U Rack
- MPN: SU1500LCD1U
- UPC: 037332238122
- PPN: TRP-SU1500LCD1U
CAD
$1926.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartOnline 1500VA 1440W 120V Double-Conversion UPS - 5 Outlets, Network Card Option, LCD, USB, DB9, 1U Rack
Features
- SU1500LCD1U SmartOnline Double-Conversion UPS
- USB cable
- RS-232 cable

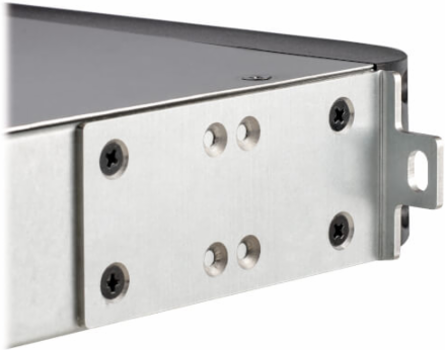

- Rack-mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
- UPS Input Connection Type
- 5-15P
- UPS Input Cord Length
- 6 ft
- Primary Form Factor
- Rackmount
- Primary UPS Depth
- 710 mm
- Primary UPS Width
- 440 mm
- UPS Power Module Weight
- 20.50 lb
- Unit Weight
- 45.190 lb
- Network Management Cards
- WEBCARDLXE
Input Circuit Breakers20A
Output Receptacles(5) 5-15R
Minimum Required Rack Depth31 in
Primary UPS Height44 mm
UPS Power Module Dimensions1.73 x 17.32 x 27.950 in
Unit Dimensions1.730 x 17.320 x 27.950 in
Communications InterfaceContact closure; EPO (emergency power off); RS-232; Slot for SNMP/Web interface; USB (HID enabled)
Performance
- UPS Type
- On-Line
- Output Capacity Details
- ON LINE MODE: Maximum output capacity reduced to 1296 W at 100V nominal; FREQUENCY REGULATION/CONVERSION MODE: reduced to 864 W (127/120V) / 778 W (100V); OVERLOAD CAPACITY: supports 105% load continuously, 106-115% for 1 min, 116-130% for 12 sec, 131-149% for 2 sec, >150% for 0 sec before switching to bypass or shutdown
- Rated Input Current
- 13A (100V); 12A (120V); 11.3A (127V)
- Recommended Electrical Service
- 15A 120V
- Frequency Compatibility
- 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
- Output AC Waveform
- Pure Sine wave
- Battery Recharge Rate
- Less than 8 hours recharge to 90%
- AC Economy Mode BTU / Hr.
- 100.274
- Storage Temperature Range
- 5° to 122°F (-15° to 50°C)
- Operating Elevation
- 0-10000 ft. (0-3000 m)
Output Capacity1440 W
Input PhaseSingle-Phase
Maximum Input Amps13A
Nominal Voltage Details120V factory-default nominal voltage
Output Voltage Regulation+/- 3%
DC System Voltage48V
AC Mode Efficiency Rating90%
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative Humidity5% to 95%, non-condensing
Audible Noise65 dBA at 1m front side
Material
- UPS Housing Material
- Steel
- Battery Type
- Valve Regulated Lead Acid (VRLA)
- Voltage Regulation Description
- Online, double-conversion power conditioning maintains 3% output voltage regulation during brownouts and overvoltages
- Switches
- 2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select options enable LCD status viewing and configuration options
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload and UPS fault conditions
- Communications Cable
- USB and RS232 cabling included
- UPS Applications
- Mission Critical Applications
Cooling MethodFan
Battery Replacement DescriptionHot-swappable, user replaceable batteries
Front Panel LCD DisplayFront panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
Alarm Cancel OperationPower-fail alarm can be temporarily silenced using alarm-cancel switch
LED IndicatorsTwo front panel LEDs indicate AC Output status (green) and Shutdown / Fault condition (red)
Green Energy-Saving FeaturesHigh efficiency economy mode operation; Individually controllable load banks
Reference
- Product Warranty Period
- 2-year limited warranty
