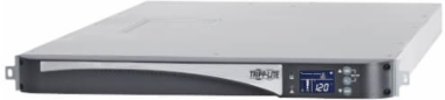

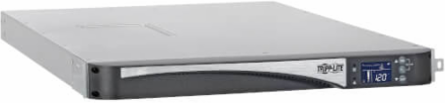

Tripp Lite SU2000LCD1U UPS, Double-Conversion Online, 2000VA, 1600W, 120V, 5 Outlets, LCD, 1U Rack

MPN: SU2000LCD1U
UPC: 037332238146
PPN: TRP-SU2000LCD1U

$2234.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

120V 2000VA 1600W Double-Conversion Smart Online UPS - 5 Outlets, Card Slot, LCD, USB, DB9, 1U Rack

Features

SU2000LCD1U SmartOnline Double-Conversion UPS
USB cable
RS-232 cable

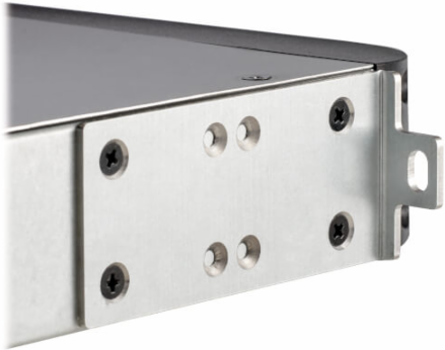

Rack-mounting hardware
Owner's manual

Documentation & Downloads

Specifications

Dimensions

UPS Input Connection Type	5-20P
UPS Input Cord Length	6 ft
Primary Form Factor	Rackmount
Primary UPS Depth	710 mm
Primary UPS Width	440 mm
UPS Power Module Weight	22.00 lb
Unit Weight	48.500 lb
Network Management Cards	WEBCARDLXE

Input Circuit Breakers	20A
Output Receptacles	(5) 5-15/20R
Minimum Required Rack Depth	31 in
Primary UPS Height	44 mm
UPS Power Module Dimensions	1.73 x 17.32 x 27.950 in
Unit Dimensions	1.730 x 17.320 x 27.950 in
Communications Interface	Contact closure; EPO (emergency power off); RS-232; Slot for SNMP/Web interface; USB (HID enabled)

Material

UPS Housing Material	Steel
Battery Type	Valve Regulated Lead Acid (VRLA)
Voltage Regulation Description	Online, double-conversion power conditioning maintains 3% output voltage regulation during brownouts and overvoltages
Switches	2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select options enable LCD status viewing and configuration options
Audible Alarm	Audible alarm indicates UPS startup, power-failure, low-battery, overload and UPS fault conditions
Communications Cable	USB and RS232 cabling included
UPS Applications	Mission Critical Applications

Cooling Method	Fan
Battery Replacement Description	Hot-swappable, user replaceable batteries
Front Panel LCD Display	Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
Alarm Cancel Operation	Power-fail alarm can be temporarily silenced using alarm-cancel switch
LED Indicators	Two front panel LEDs indicate AC Output status (green) and Shutdown / Fault condition (red)
Green Energy-Saving Features	High efficiency economy mode operation; Individually controllable load banks

Performance

UPS Type	On-Line
Output Capacity Details	ON LINE MODE: Maximum output capacity reduced to 1440 W at 100V nominal; FREQUENCY REGULATION/CONVERSION MODE: reduced to 960 W (127/120V) / 864 W (100V); OVERLOAD CAPACITY: supports 105% load continuously, 106-115% for 1 min, 116-130% for 12 sec, 131-149% for 2 sec, >150% for 0 sec before switching to bypass or shutdown
Rated Input Current	15.9A (100V); 14.7A (120V); 13.9A (127V)
Recommended Electrical Service	20A 120V
Frequency Compatibility	50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Output AC Waveform	Pure Sine wave
Battery Recharge Rate	Less than 8 hours recharge to 90%
AC Economy Mode BTU / Hr.	111.4
Storage Temperature Range	5° to 122°F (-15° to 50°C)
Operating Elevation	0-10000 ft. (0-3000 m)

Output Capacity	2000 VA / 1600 W
Input Phase	Single-Phase
Maximum Input Amps	16A
Nominal Voltage Details	120V factory-default nominal voltage
Output Voltage Regulation	+/- 3%
DC System Voltage	48V
AC Mode Efficiency Rating	90%
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	5% to 95%, non-condensing
Audible Noise	65 dBA at 1m front side
