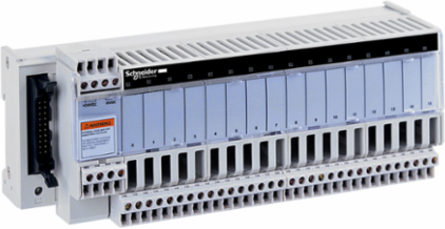

Schneider Electric ABE7P16F312 Modicon ABE7 Sub-Base for Plug-In Relay, 16 Channels, 12.5 mm
- MPN: ABE7P16F312
- PPN: SCH-ABE7P16F312
CAD
$401.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon ABE7 Sub-Base from Schneider Electric is designed to enhance automation and control systems with its impressive functionality tailored for plug-in relays. Featuring 16 channels, this sub-base offers seamless connectivity and reliable operation, making it an essential component in complex control setups. Weighing in at a lightweight 0.85 kg, its efficient design facilitates ease of installation and integration into various industrial applications. With this sub-base, users can expect enhanced efficiency and streamlined processes within their automation systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Latvia |
|---|
Complementary Attributes
| Maximum Supply Current | 1 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Certificate Agency | DNV, GL, CSA, EAC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.11735157284598244, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.20811674966085866, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 972 kg CO2 eq., 971.7360356355297 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Installation Category | II IEC 60664-1 |
| Number Of Terminal Per Channel | 2 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon ABE7 |
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
| Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Status Led | 1 LED per channel (Green) channel status1 LED (Green) power ON |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 996 kg CO2 eq. |
| Voltage Drop On Power Supply Fuse | 0.3 V |
| Pep Code | ENVPEP1212029_V4 |
| Pep Verification Date | 2026-06-18 |
| Psr Version | No PSR |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Latvia, LV |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 6 |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV |
| Short-circuit Protection | 1 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Sub-base Type | input sub-base |
| Package Weight(Lbs) | 786.0 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Connections - Terminals | screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² 28 AWG...16 AWG) flexible with cable endscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² 28 AWG...20 AWG) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² 24 AWG...14 AWG) solid |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 1.6920186507560764 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 22 kg CO2 eq., 22.044289547010454 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1212029EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1845 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Fixing Mode | by clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit) |
| Number Of Channels | 16 |
| Polarity Distribution | polarity distribution contact common per group of 4 channels |
| Product Or Component Type | sub-base for plug-in relay |
| Resistance To Electrostatic Discharge | 4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2 |
| Resistance To Incandescent Wire | 750 °C IEC 60695-2-11 |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Supply Circuit Type | DC |
| Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
| Vibration Resistance | 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 2102.4 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| [Ui] Rated Insulation Voltage | 300 V coil circuit/contact circuits IEC 60947-12000 V terminals/mounting rails |
| [Us] Rated Supply Voltage | 19...30 V IEC 61131-2 |
| Isolation Plc/Operative Part | yes |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2 |
|---|---|
| Product Compatibility | ABR7, ABS7S33E, ABS7E |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1212029EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-06-18 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2 |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 995.7978121558031 |
| Environmental Disclosure | ENVPEP1212029_V4 |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1212029_V4 |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | sub-base for plug-in relay |
|---|
| Range Of Product | Modicon ABE7 |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
