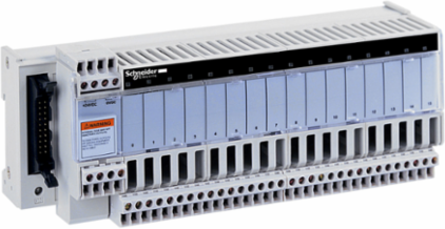

Schneider Electric ABE7S16E2B1 Modicon ABE7 Solid State Output Relay Sub-Base, 16 Inputs, 24 V DC
- MPN: ABE7S16E2B1
- PPN: SCH-ABE7S16E2B1
CAD
$668.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered solid state output relay, provides 16 channels. It has 2 terminals per channel. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a current of 0.012A per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.37kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia, United States
Complementary Attributes
- Maximum Switching Current
- 15 mA PLC end)
Minimum Switching Current1 mA for PLC end
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current State 1 Guaranteed
- >= 2 mA sensor end), >= 2 mA sensor end)>= 2 mA sensor end), >= 2 mA sensor end)
- Switching Frequency
- <= 1000 Hz 50 %, <= 1000 Hz 50 %<= 1000 Hz 50 %, <= 1000 Hz 50 %
- Certificate Agency
- UL, DNV, CSA, GL, EAC
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² 28 AWG...16 AWG) flexible with cable endscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² 28 AWG...20 AWG) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² 24 AWG...14 AWG) solid
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.9428806221770503
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 12 kg CO2 eq., 12.284222419326436
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1212029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1845
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current Per Channel
- 0.012 A
- Fixing Mode
- by clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
- Number Of Channels
- 16
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Type
- internal fuse 1 A 5 x 20 mm fast blow PLC endadjustable by external fuse fast blow sensor end
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
- Resistance To Incandescent Wire
- 750 °C IEC 60695-2-11
- Returnability
- No
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Vibration Resistance
- 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP1212029_V4
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Latvia, LV
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 6
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Response Time<= 0.05 ms from state 0 to 1, <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0, <= 0.4 ms from state 1 to 0<= 0.05 ms from state 0 to 1, <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0, <= 0.4 ms from state 1 to 0
Voltage State 1 Guaranteed>= 15 V sensor end, >= 15 V sensor end>= 15 V sensor end, >= 15 V sensor end
[Us] Rated Supply Voltage24 V DC PLC end), 24 V DC sensor end)
Carbon Footprint Of The Distribution Phase [A4]0.06539438792180702, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.11597345591788308, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]49 kg CO2 eq., 48.58680178177649
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Dielectric Strength2000 V 50/60 Hz IEC 60947-1
Installation CategoryII IEC 60664-1
Number Of Terminal Per Channel2
Product Or Component Typesolid state input relay sub-base
Range Of ProductModicon ABE7
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Voltage Limits19-30 V DC PLC end)IEC 61131-2
Terminal Block Typeremovable
Total Lifecycle Carbon Footprint62 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh105.12
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ui] Rated Insulation Voltage2000 V
Isolation Plc/Operative Partyes
Package Weight(Lbs)438.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 61.995272667119664
- Environmental Disclosure
- ENVPEP1212029_V4
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1212029_V4
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- solid state input relay sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC001284
ETIM 9EC001284
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
