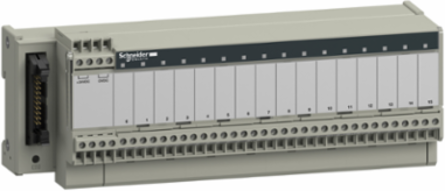

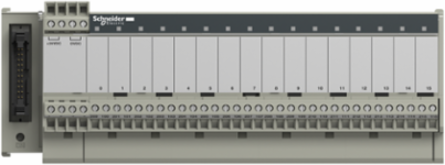

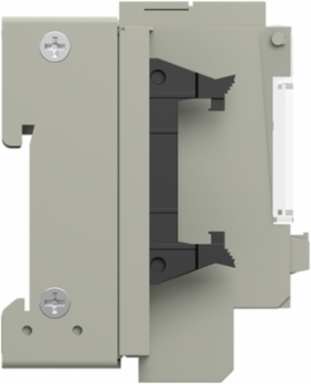

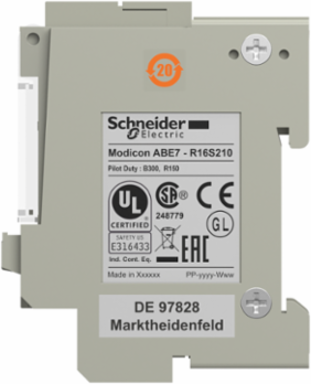

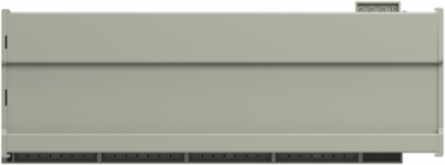

Schneider Electric ABE7R16S210 Electromechanical Relay Sub-Base, 16 Channels, 206 mm Width, 10 A Output
- MPN: ABE7R16S210
- PPN: SCH-ABE7R16S210
CAD
$462.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered electromechanical relay, provides 16 channels. It has normally opened contact for pre-actuator. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 24V DC and a maximum current of 10A per output. It offers electrical durability about 500000 operating cycles. It is an IP2x rated product. Its dimension is 206mm (Width). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon ABE7
- Number Of Terminal Per Channel
- 2
- [Us] Rated Supply Voltage
- 24 V DC PLC end
Product Or Component Typeelectromechanical output relay sub-base
Number Of Channels16
Complementary
- Contacts Type And Composition
- 1 NO preactuator end
- Switching Frequency
- <= 0.5 Hz || <= 10 Hz
- Installation Category
- II IEC 60664-1
- Current Per Channel
- 5 A preactuator end
- Net Weight
- 0.405 kg
- Fixing Mode
- by clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
- Maximum Switching Voltage
- 250 V AC 50/60 Hz IEC 60947-5-1 || 30 V DC IEC 60947-5-1
- Polarity Distribution
- volt-free
- Mechanical Durability
- 20000000 cycles
- Maximum Power Dissipation Per Channel In W
- 0.36 W PLC end)
- Width
- 206 mm
- Electrical Reliability
- 1e-008
- Drop-Out Current
- 1 mA 20 °C
Minimum Switching Current10 mA >= 5 V
Terminal Block Typeremovable
Maximum Current Per Output Common10 A
[Ui] Rated Insulation Voltage2000 V
Electrical Durability500000 cycles 600 mA 24 V DC-13 10 ms preactuator end) || 500000 cycles 1500 mA 230 V AC-12 preactuator end) || 500000 cycles 1500 mA 24 V DC-12 preactuator end) || 500000 cycles 900 mA 230 V AC-15 preactuator end)
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Contact Bounce Time<= 5 ms 1 NO
Tightening Torque0.6 N.m flat Ø 3.5 mm
Operating Time<= 10 ms coil energisation and NO closing || <= 5 ms coil de-energisation and NO opening
Drop-Out Voltage2.4 V 20 °C PLC end)
Operating Rate In Hz10 Hz no load || 0.5 Hz at Ie
Threshold Tripping Voltage19.7 V 40 °C
Environment
- Product Certifications
- GL || CSA || DNV || UL || EAC
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Dielectric Strength
- 2000 V IEC 60947-1
- Ip Degree Of Protection
- IP2X IEC 60529
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Protective Treatment
- TC
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Max Immunity To Microbreaks5 ms
Pollution Degree2 IEC 60664-1
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121229EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1212029EN
