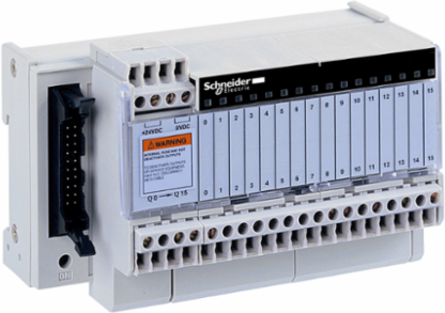

Schneider Electric ABE7S16S1B2 Solid State Output Relay Sub-Base 16 Outputs 0.5 A
- MPN: ABE7S16S1B2
- PPN: SCH-ABE7S16S1B2
CAD
$895.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with fixed solid-state relays for 16 channels, with 2 terminals per channel. Its control circuit voltage is 24VDC. It provides a digital output control function. It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a relay output sub-base with IP20 degree of protection. It weighs 0.400kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia, United States
Complementary Attributes
- Maximum Switching Current
- 700 mA DC-12, 700 mA DC-13
- Maximum Circuit Breaker Threshold
- 0.75 A
- Maximum Residual Current
- 0.5 mA preactuator end
Maximum Tungsten Load<10 W DC-6, <10 W DC-6<10 W DC-6, <10 W DC-6
Maximum Current Per Output Common9 A
Minimum Switching Current1 mA
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Fault Type
- short-circuit, overload
- Switching Frequency
- < 0.6/LI² Hz, < 0.6/LI² Hz
- [Us] Rated Supply Voltage
- 24 V DC PLC end, 24 V DC preactuator end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.05121067364652924, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.09081939584436963, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 49 kg CO2 eq., 48.58680178177649
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current State 0 Guaranteed
- 0.4 mA PLC end)
- Fault Indication
- without
- Installation Category
- II IEC 60664-1
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Relay Type
- soldered solid state relay
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Returnability
- No
- Software Version
- v6.2.5-6
- Terminal Block Type
- removable
- Total Lifecycle Carbon Footprint
- 59 kg CO2 eq.
- Voltage State 1 Guaranteed
- 16.9 V PLC end
- Pep Code
- ENVPEP1212029_V4
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Latvia, LV
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 6
- Drop-out Voltage
- 0.3 V preactuator end)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908585
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Response Time<= 0.1 ms from state 1 to 0, <= 0.1 ms from state 1 to 0, <= 0.2 ms from state 0 to 1, <= 0.2 ms from state 0 to 1<= 0.1 ms from state 1 to 0, <= 0.1 ms from state 1 to 0, <= 0.2 ms from state 0 to 1, <= 0.2 ms from state 0 to 1
Certificate AgencyGL, UL, DNV, CSA, EAC
Switchable Inductive Energy L/R<= 400(U.I) ms, <= 400(U.I) ms
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7 kg CO2 eq., 0.7383745511569137
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 9.619836278148329
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1212029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Current Per Channel0.5 A preactuator end
Current State 1 Guaranteed3.1 mA PLC end)
Fixing Modeby clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
Number Of Channels16
Product Or Component Typesolid state output relay sub-base
Range Of ProductModicon ABE7
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Sustainable PackagingNo
Tightening Torque0.6 N.m flat Ø 3.5 mm
Voltage State 0 Guaranteed3.4 V PLC end
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh105.12
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal125 mm
Isolation Plc/Operative Partno
Package Weight(Lbs)343.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 59.08704268057263
- Environmental Disclosure
- ENVPEP1212029_V4
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1212029_V4
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- solid state output relay sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC001284
ETIM 9EC001284
Output Attributes
- Maximum Current Per Output Common
- 9 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
