Solid State Output Relay Sub-Base 16 Inputs 48V AC
Schneider Electric

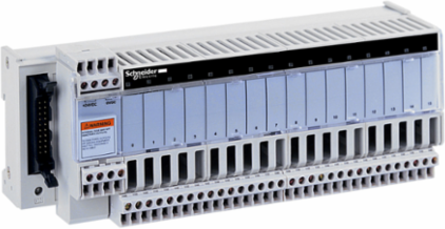

Schneider Electric ABE7S16E2E0 Solid State Output Relay Sub-Base 16 Inputs 48V AC

  • MPN: ABE7S16E2E0
  • PPN: SCH-ABE7S16E2E0

CAD

$668.31

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with fixed solid-state relays for 16 channels, with 2 terminals per channel. Its control circuit voltage is 48VAC. It provides a digital input control function. It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a relay output sub-base with IP20 degree of protection. It weighs 0.370kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Latvia

Complementary Attributes

Maximum Switching Current
15 mA PLC end)
Minimum Switching Current1 mA for PLC end

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Current State 1 Guaranteed
>= 5 mA sensor end), >= 5 mA sensor end)>= 5 mA sensor end), >= 5 mA sensor end)
Switching Frequency
<= 25 Hz 50 %, <= 25 Hz 50 %<= 25 Hz 50 %, <= 25 Hz 50 %
Certificate Agency
GL, DNV, CSA, UL, EAC
Connections - Terminals
screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² 28 AWG...16 AWG) flexible with cable endscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² 28 AWG...20 AWG) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² 24 AWG...14 AWG) solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]
1 kg CO2 eq., 1.0311411370383723
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
13 kg CO2 eq., 13.434115385519092
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
No
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1212029EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1845
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Market Segmentation
Industrial
Current Per Channel
0.012 A
Fixing Mode
by clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
Number Of Channels
16
Product Availability
Non-Stock - Not normally stocked in distribution facility
Protection Type
internal fuse 1 A 5 x 20 mm fast blow PLC endadjustable by external fuse fast blow sensor end
Resistance To Electrostatic Discharge
4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
Resistance To Incandescent Wire
750 °C IEC 60695-2-11
Returnability
No
Software Version
v6.2.5-6
Sustainable Packaging
No
Tightening Torque
0.6 N.m flat Ø 3.5 mm
Vibration Resistance
2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Pep Code
ENVPEP1212029_V4
Pep Verification Date
2026-06-18
Psr Version
No PSR
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Low voltage; 2020; Latvia, LV
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %
6
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Response Time<= 20 ms from state 0 to 1, <= 20 ms from state 0 to 1, <= 20 ms from state 1 to 0, <= 20 ms from state 1 to 0<= 20 ms from state 0 to 1, <= 20 ms from state 0 to 1, <= 20 ms from state 1 to 0
Voltage State 1 Guaranteed>= 32 V sensor end, >= 32 V sensor end>= 32 V sensor end, >= 32 V sensor end
[Us] Rated Supply Voltage48 V AC 50/60 Hz sensor end), 24 V DC PLC end)
Carbon Footprint Of The Distribution Phase [A4]0.07151578039850584, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.12682941868645203, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]49 kg CO2 eq., 48.58680178177649
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Dielectric Strength2000 V 50/60 Hz IEC 60947-1
Installation CategoryII IEC 60664-1
Number Of Terminal Per Channel2
Product Or Component Typesolid state input relay sub-base
Range Of ProductModicon ABE7
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Voltage Limits19-30 V DC PLC end)IEC 61131-2
Terminal Block Typeremovable
Total Lifecycle Carbon Footprint63 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh105.12
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ui] Rated Insulation Voltage2000 V
Isolation Plc/Operative Partyes
Package Weight(Lbs)479.0 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
Take Back
No
China Rohs Regulation
X
Carbon Footprint
63.25040350341891
Environmental Disclosure
ENVPEP1212029_V4
Ip Degree Of Protection
IP2X conforming to IEC 60529
Packaging Without Single Use Plastic
Yes
Pep Code
ENVPEP1212029_V4
Pcr Version
PCR-4-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR

General Attributes

Product Or Component Type
solid state input relay sub-base
Range Of ProductModicon ABE7

ETIM

ETIM 8
EC001284
ETIM 9EC001284

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
