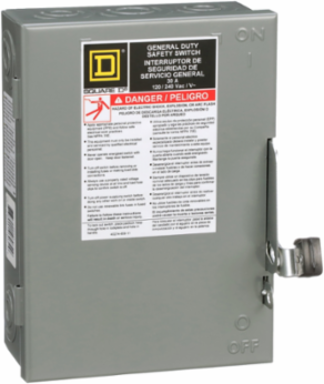

Square D D211N General Duty Safety Switch 30A 120/240VAC 2 Pole 3 Wire
Square D D211N General Duty Safety Switch 30A 120/240VAC 2 Pole 3 Wire
- MPN: D211N
- UPC: 785901460329
- PPN: SCH-D211N
- UNSPSC: 39122205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$60.69/ EA
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 30A for 120/240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The device accepts plug fuse types. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
Features
- Designed for residential and commercial applications
- Fusible switches provide over-current and short circuit protection
- Excellent for disconnecting lighting, air condition, and appliances
- Quick make, quick break operating mechanism
- UL listed
Specifications
Conformance Attributes
- Product Certifications
- UL listed file E2875
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- AWG Gauge
- AWG 14...AWG 6 copper, AWG 12...AWG 6 aluminium
- Carbon Footprint Of The Distribution Phase A4
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.12085463536779531, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 9 kg CO2 eq., 8.942704591166205
- Local Publishable Date
- 2025-11-13
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Device Composition
- neutral/earth strip 2 x 16 mm² 5 x 6 mm²
- Electrical Connection
- lugs
- Fuse Type
- plug
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Short Circuit Current
- 10 kA plug
- Tightening Torque
- 30-30 lbf.in 2.08-13.3 mm² (AWG 14...AWG 6)
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ue Rated Operational Voltage2
- 120 V AC
- Stocking Flag
- N
- Pep Code
- ENVPEP1310005EN
- Pep Verification Date
- 2025-09-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Ue Rated Operational Voltage5
- 120 V AC
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Motor Power HP0.5 hp at 120 V AC 60 Hz for 1 phase motors, 2 hp at 120 V AC 60 Hz for 1 phase motors, 1.5 hp at 240 V AC 60 Hz for 1 phase motors, 3 hp at 240 V AC 60 Hz for 1 phase motors
Carbon Footprint Of The End Of Life Phase C1 To C43 kg CO2 eq., 2.811567724491512
Carbon Footprint Of The Manufacturing Phase A1 To A312 kg CO2 eq., 12.295588371752363
Local Data StatusPublishable
ManufacturerSchneider Electric
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationresidential
Disconnector Device Typefusible disconnect switch
Energy Efficiency OptimizedFalse
Package Weight Lbs1.892 kg
Product Or Component TypeSingle Throw Safety Switch
Series Namegeneral duty
Sustainable PackagingYes
Total Lifecycle Carbon Footprint24 kg CO2 eq.
Wiring Configuration3-wire
Medium DescSafety switch, general duty, fusible, 2 pole, 3 wire, 120/240VAC, 30A, Type 1, with neutral
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Environment Attributes Main
- EU ROHS Directive
- Compliant , Compliant
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 24.170715322777873
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1310005EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP1310005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months

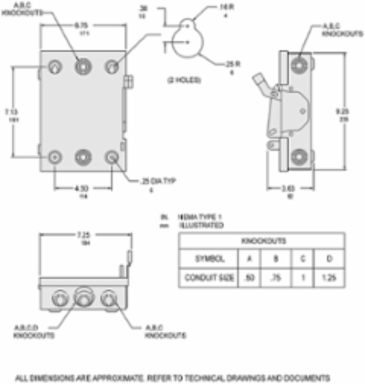

Specifications
- Depth
- 3.63 in
