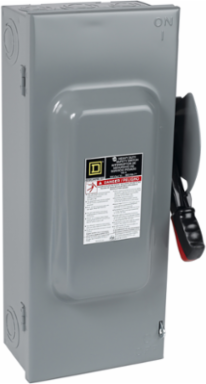

Square D H462 Heavy Duty Fusible Safety Switch 600V 60A 4-Pole NEMA 1
- MPN: H462
- UPC: 785901482475
- PPN: SCH-H462
CAD
$1113.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for heavy-duty applications, this fusible safety switch from Schneider Electric ensures reliable performance in demanding environments. With a rated operational voltage of 600V AC/DC and a robust 60A current capacity, it is engineered to handle three-phase networks efficiently. The switch features a NEMA 1 steel enclosure for protection against dust and moisture, making it suitable for various industrial settings. Additionally, it is UL listed and adheres to stringent environmental standards, ensuring both safety and sustainability. Its compact design, measuring 20.5 inches in height and 16.13 inches in width, allows for easy surface mounting while providing a high short-circuit current rating, making it an ideal choice for those looking for a dependable safety solution.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 1 steel
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 4
Disconnector Device Typefusible disconnect
[In] Rated Current60 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary
- Height
- 20.5 in
- Tightening Torque
- 50-50 lbf.in AWG 3) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 50-50 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Electrical Connection
- lugs
- Width
- 16.13 in
- Depth
- 6.85 in
- Short-Circuit Current
- 10 kA for H or K || 200 kA for R or J
Device Mountingsurface
Fuse TypeH or K || R or J
Awg GaugeAWG 14...AWG 3 copper || AWG 12...AWG 3 aluminum
Wiring Configuration4-wire
Net Weight13 kg
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
