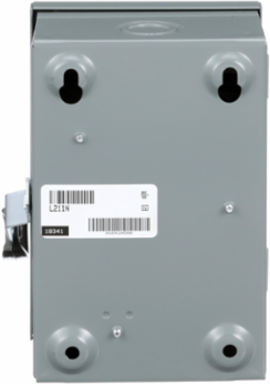

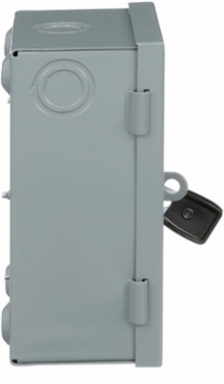

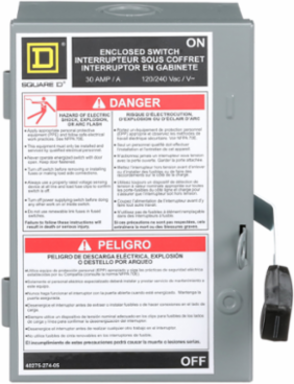

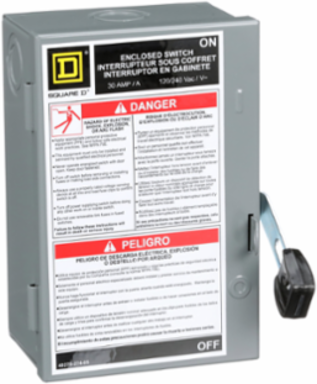

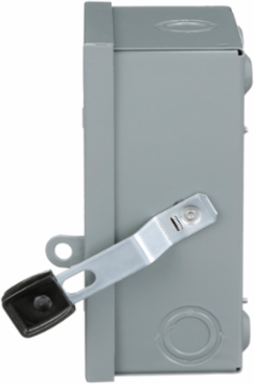

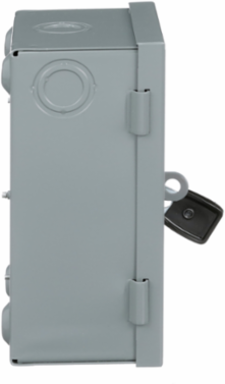

Square D L211N Light Duty Fusible Safety Switch, 30A, 2 Poles, 120VAC, NEMA 1
- MPN: L211N
- UPC: 785901090526
- PPN: SCH-L211N
CAD
$87.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Schneider Electric's Square D light duty safety switches are ideal for home applications in disconnecting power to workshops, hobby rooms, furnaces, and garages. This single throw safety switch is a fusible disconnect and has a rated current of 30A for 240VAC. This light duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The device accepts plug fuse types. The enclosure is surface mounted and is a Type 1.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States

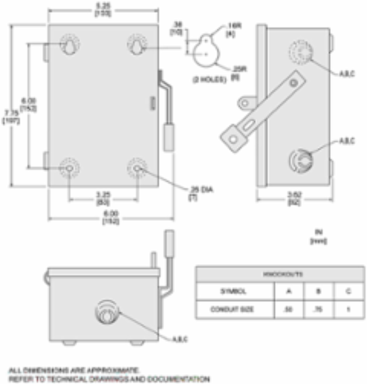

Depth4 in
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Awg Gauge
- AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminium
- Tightening Torque
- 30-30 lbf.in 2.082-8.367 mm² (AWG 14...AWG 8), 30-30 lbf.in 3.307-8.367 mm² (AWG 12...AWG 8)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 2.3256360934615308
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 10 kg CO2 eq., 10.1705051806514
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 60.50
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Disconnector Device Type
- fusible disconnect
- Fuse Type
- plug
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 79 kg CO2 eq.
- Pep Code
- ENVPEP1310005EN
- Pep Verification Date
- 2025-09-24
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 7.63 in
- Certificate Agency
- UL listed file E2875
- Short-circuit Current
- 10 kA
- Package Weight(Lbs)
- 1.565 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Device Applicationfurnace, garages
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.09996696847283282, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]66 kg CO2 eq., 66.1846542689209
Local Publishable Date2025-11-18
Future Imap49.14
Stocking FlagN
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1904
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Compositionneutral (factory installed)
Energy Efficiency OptimizedFalse
Number Of Poles2
Product Or Component TypeSingle Throw Safety Switch
Series Namelight duty
Sustainable PackagingNo
Wiring Configuration3-wire
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %88
Width Nominal6.13 in
[Ue] Rated Operational Voltage240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 78.78076251150665
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1310005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1310005EN
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-09-24
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
