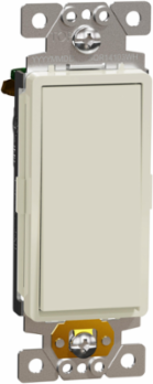

Schneider Electric SQR14100LA Switch, X Series, 15A, single pole, 1 way, light almond, 10 pc order qty
Schneider Electric SQR14100LA Switch, X Series, 15A, single pole, 1 way, light almond, 10 pc order qty
- MPN: SQR14100LA
- PPN: SCH-SQR14100LA
- UNSPSC: 39121406
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3.80/ EA
Description
The Square D X Series 15A Single-Pole Switch Module with side wire clamps (with light almond rocker cover plate) allows you to swap out faceplates quickly and easily without removing the switch and rewiring. The rated operational voltage of this switch is 120V and 277V. Its unique patented switch module is designed to support the swap out of the color rocker cover plate that easily snaps into place for a modern, flush facing finish to your walls. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate, so that the personalization of your interior design with many styles of décor is possible. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. The connection is screw terminals. This product is ordered in quantities of 10.
Features
- Patented switch module design supports the swap out of color rocker plate
- Self grounded with brass ground contact to ensure device’s ground retention to metal boxes
- Silver alloy switch actuator contacts assure long lasting reliable performance
- Combo screw heads accept slotted, Phillips, and Robertson Square tools
- Zinc plated steel mounting strap for rust resistance
Specifications
Physical Attributes
- Color
- light almond
- Color Tint
- light almond
Main Color Tintlight almond
Conformance Attributes
- Product Certifications
- cULus
StandardsUL 20
Important Information Attributes
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Aesthetic Name
- X Series
- Energy Efficiency Optimized
- False
- Market Segment
- residential
- Mounting Mode
- by screws
- Network Type
- AC
- Package Weight Lbs
- 68 g
- Product Or Component Type
- switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Targeted Channel
- distributor
- Ue Rated Operational Voltage2
- 120 V
- Color Tint
- light almond
- Stocking Flag
- Y
- Earth Circuit
- self earthing
- Actuator
- rocker
Local Publishable Date2025-11-13
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeNo
Without Single Use PlasticYes
Return IndicatorY
Device Applicationcontrol
Main Color Tintlight almond
Materialplastic: strap
Network Frequency60 Hz
Number Of Gangs1 gang
Product AvailabilityStock - Normally stocked in distribution facility
RangeSquare D X Series
Surface FinishMatte
Switch Function1-way
Ie Rated Operational Current Ac215 A
Connections Terminalsphase and neutral 2 screw terminal AWG 14...AWG 12) copper
Medium DescSwitch, X Series, 15A, single pole, 1 way, light almond, 10 pc order qty
Product Kit IdentifierN
Global Commercial StatusCommercialised
Connections Terminals3phase and neutral 2 screw terminal AWG 14...AWG 12) copper
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant , Compliant
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- switch
Contractual Warranty Attributes
- Warranty Period
- 2 years
Warranty2 years
Overview Attributes
- Device Presentation
- mechanism with fixing frame
Downloads
