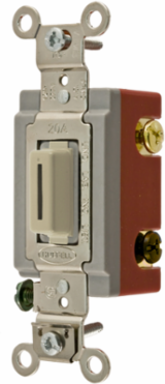

Hubbell Wiring Device-Kellems HBL1223LI Heavy Duty Locking Toggle Switch, 20A 120/277V, 3 Way, Ivory
Hubbell Wiring Device-Kellems HBL1223LI Heavy Duty Locking Toggle Switch, 20A 120/277V, 3 Way, Ivory
- MPN: HBL1223LI
- UPC: 783585188621
- PPN: HBL-HBL1223LI
- UNSPSC: 39122224
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$132.80/ EA
Description
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Ivory Key Guide
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 4.06 in x 1.31 in x 1.13 in
- Height
- 1.13 in
- Length
- 4.06 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Amperage Rating
- 20 A
- Color
- Ivory
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.31 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- 3W TOG, IND GRD, 20A 120/277V, LK, IV
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.25 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 12.400 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 1116.000 lb.
Current / Amperage Rating20 A
Each - Width1.900 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
ActionSPDT
ApplicationBack and Side Wired
Size4.06 in x 1.31 in x 1.13 in
TypeLocking
Voltage Rating Description120-277 VAC
ConnectivityBack and Side Wired
Number Of PolesSingle Pole
StyleThree Way
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
SeriesExtra Heavy Duty
BOX SIZE3.600x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585188621
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585188620
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
