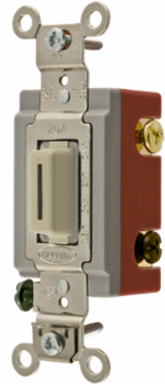

Hubbell Wiring Device-Kellems HBL1224LI Heavy Duty Locking Toggle Switch, 20A 120-277V, Four Way, Ivory
- MPN: HBL1224LI
- UPC: 783585188652
- PPN: HBL-HBL1224LI
- UNSPSC: 39122224
CAD
$232.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Ivory Key Guide
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.06 in x 1.31 in x 1.13 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Action
- DPDT
- Application
- Back and Side Wired
- Size
- 4.06 in x 1.31 in x 1.13 in
- Type
- Locking
- Voltage Rating Description
- 120-277 VAC
- Engineering Drawing 1 Display Text
- HBL1224LI AutoCAD Drawing
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- 4W TOG, IND GRD, 20A 120/277V, LK, IV
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.15 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 13.100 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height1.13 in
Length4.06 in
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating20 A
ColorIvory
StandardUL Listed
Voltage Rating120-277 VAC
Width1.31 in
ConnectivityBack and Side Wired
Number Of PolesDouble Pole
StyleFour Way
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
SeriesExtra Heavy Duty
BOX SIZE3.700x10.000x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585188652
Case - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code3359315101
Certifications
- EU RoHS Indicator
- No
