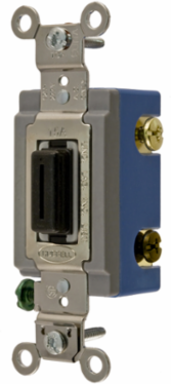

Hubbell Wiring Device-Kellems HBL1204L Heavy Duty Locking Toggle Switch, 15A 120/277V AC, 4 Way, Back and Side Wired
- MPN: HBL1204L
- UPC: 783585430409
- PPN: HBL-HBL1204L
- UNSPSC: 39122224
CAD
$216.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Four Way, 15A 120/277V AC, Back and Side Wired, Black Key Guide
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 4.06 in x 1.31 in x 1.13 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Action
- DPDT
- Application
- Back and Side Wired
- Size
- 4.06 in x 1.31 in x 1.13 in
- Type
- Locking
- Voltage Rating Description
- 120-277 VAC
- Width
- 1.31 in
- General Literature Asset 1 Display Text
- Food Processing Guide
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- 4 WAY TOG, IND GRD, 15A 120/277V, LOCK
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A240
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.800x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585430409
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359315101
Current / Amperage Rating15 A
Height1.13 in
Length4.06 in
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating15 A
ColorBlack
StandardUL Listed
Voltage Rating120-277 VAC
Weight0.2 lb.
Engineering Drawing 1 Display TextHBL1204L AutoCAD Drawing
ConnectivityBack and Side Wired
Number Of PolesDouble Pole
StyleFour Way
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number1204L
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.4 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight13.150 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
