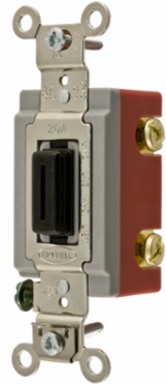

Hubbell Wiring Device-Kellems HBL1222L Extra Heavy Duty Locking Toggle Switch, 20A 120/277V AC, Double Pole, 4.06 Inch Length
Hubbell Wiring Device-Kellems HBL1222L Extra Heavy Duty Locking Toggle Switch, 20A 120/277V AC, Double Pole, 4.06 Inch Length
- MPN: HBL1222L
- UPC: 783585431666
- PPN: HBL-HBL1222L
- UNSPSC: 39122224
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$130.51/ EA
Description
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Black Key Guide
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Specifications
Specifications
- Country of Origin
- China
- Dimensions
- 4.06 in x 1.31 in x 1.13 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Amperage Rating
- 20 A
- Color
- Black
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Weight
- 0.2 lb.
- Engineering Drawing 1 Display Text
- HBL1222L AutoCAD Drawing
- Connectivity
- Back and Side Wired
- Number Of Poles
- Double Pole
- Style
- Double Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 1222L;1222LG
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.45 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 12.800 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 1152.000 lb.
Current / Amperage Rating20 A
Height1.13 in
Length4.06 in
Temperature Rise - Max.30°C maximum at rated current
ApplicationBack and Side Wired
Size4.06 in x 1.31 in x 1.13 in
TypeLocking
Voltage Rating Description120-277 VAC
Width1.31 in
General Literature Asset 1 Display TextFood Processing Guide
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#14 AWG to #10 AWG
Description - InvoiceDP TOG, IND GRD, 20A 120/277V, LOCK
Harmonization Code8536509040
MSDS FlagNo
Sub Class CodeA16A240
SeriesExtra Heavy Duty
BOX SIZE3.400x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585431666
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585431665
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
