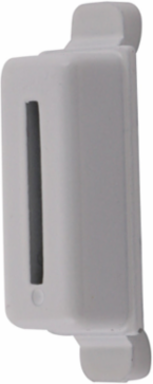

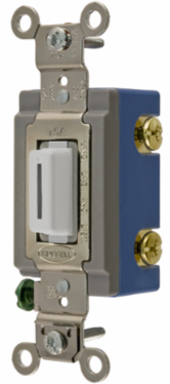

Hubbell Wiring Device-Kellems HBL1201LW Extra Heavy Duty Locking Toggle Switch, 15A 120-277V AC, Single Pole, White
- MPN: HBL1201LW
- UPC: 783585188461
- PPN: HBL-HBL1201LW
- UNSPSC: 39122224
CAD
$79.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, White Key Guide
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.06 in x 1.31 in x 1.13 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Amperage Rating
- 15 A
- Color
- White
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Width
- 1.31 in
- Connectivity
- Back and Side Wired
- Number Of Poles
- Single Pole
- Style
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A240
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.600x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585188461
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585188460
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
Height1.13 in
Length4.06 in
Temperature Rise - Max.30°C maximum at rated current
ApplicationBack and Side Wired
Size4.06 in x 1.31 in x 1.13 in
TypeLocking
Voltage Rating Description120-277 VAC
Engineering Drawing 1 Display TextHBL1201LW AutoCAD Drawing
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#14 AWG to #10 AWG
Description - InvoiceSP TOG, IND GRD, 15A 120/277V, LK, WH
Harmonization Code8536509040
MSDS FlagNo
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight11.850 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight1066.500 lb.
NAICS Code3359315101
Certifications
- EU RoHS Indicator
- No
