Hubbell Wiring Device-Kellems HBL1386L Industrial Grade Locking Toggle Switch, 20A 120/277V AC, DPDT
Hubbell Wiring Device-Kellems HBL1386L Industrial Grade Locking Toggle Switch, 20A 120/277V AC, DPDT
- MPN: HBL1386L
- UPC: 783585432687
- PPN: HBL-HBL1386L
- UNSPSC: 39122224
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$288.48/ EA
Description

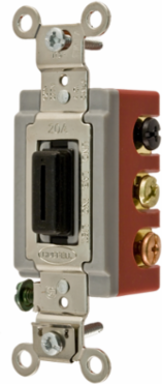

Switches and Lighting Controls, Industrial Grade, Locking Switches, General Purpose AC, Maintained Double Pole Double Throw Center Off , 20A 120/277V AC, Terminal Screws Black Key Guide
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
- Maintained Contact
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 4.06 in x 1.31 in x 1.19 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
- Action
- DPDT
- Application
- Back and Side Wired
- Size
- 4.06 in x 1.31 in x 1.19 in
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Weight
- 0.25 lb.
- Engineering Drawing 1 Display Text
- HBL1386L AutoCAD Drawing
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- TOG, 20A 120/277V, DPDT CNTR OFF, LOCK
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.65 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 12.500 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height1.19 in
Length4.06 in
Temperature Rise - Max.30°C maximum at rated current
Amperage Rating20 A
ColorBlack
Special FeaturesMaintained Contact
TypeToggle
Voltage Rating Description120-277 VAC
Width1.31 in
ConnectivityBack and Side Wired
Number Of PolesDouble Pole
StyleDouble Pole Double Throw
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
SeriesExtra Heavy Duty
BOX SIZE3.600x10.000x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585432687
Case - Total Units50 EA
Each - Pack DescriptionEach
