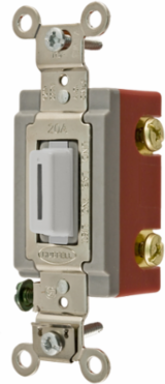

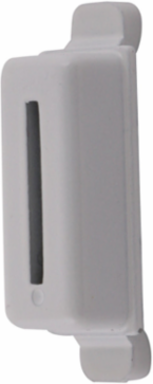

Hubbell Wiring Device-Kellems HBL1221LW Locking Toggle Switch, 20A 120/277V AC, Single Pole, 4.06 Inch x 1.31 Inch x 1.13 Inch
Hubbell Wiring Device-Kellems HBL1221LW Locking Toggle Switch, 20A 120/277V AC, Single Pole, 4.06 Inch x 1.31 Inch x 1.13 Inch
- MPN: HBL1221LW
- UPC: 783585188584
- PPN: HBL-HBL1221LW
- UNSPSC: 39122224
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$109.92/ EA
Description
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, White Key Guide
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 4.06 in x 1.31 in x 1.13 in
- Height
- 1.13 in
- Length
- 4.06 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Application
- Back and Side Wired
- Size
- 4.06 in x 1.31 in x 1.13 in
- Type
- Locking
- Voltage Rating Description
- 120-277 VAC
- Connectivity
- Back and Side Wired
- Number Of Poles
- Single Pole
- Style
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A240
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.600x9.900x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585188584
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585188583
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating20 A
Each - Width1.900 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Amperage Rating20 A
ColorWhite
StandardUL Listed
Voltage Rating120-277 VAC
Width1.31 in
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#14 AWG to #10 AWG
Description - InvoiceSP TOG, IND GRD, 20A 120/277V, LK, WH
Harmonization Code8536509040
MSDS FlagNo
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.1 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.610 lb.
Lowest Level UOMEach
Pallet Height44.100 in
Pallet Weight1057.500 lb.
Certifications
- EU RoHS Indicator
- No
