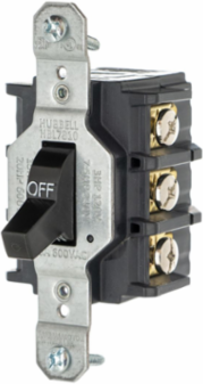

Hubbell Wiring Device-Kellems HBL7810S Circuit-Lock Manual Switch 3-Pole 30A 600V AC, Back/Side Wired
- MPN: HBL7810S
- UPC: 783585680514
- PPN: HBL-HBL7810S
- UNSPSC: 39121521
CAD
$201.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Circuit-Lock® Manual Short Toggle Controller/Motor Disconnect Switch, 3-pole 30A 600V AC, Back and Side Wired
Features
- Thermoset body provides high resistance to electrical arc tracking
- Strong ON/OFF action with quick-make, slow break operation
- Optional Side Finger Guards for close wall applications and finger safe environments
- Four large silver alloy contacts per pole has excellent conductivity with maximum longevity
- Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments
- Short Toggle
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Current / Amperage Rating | 30 A |
| Horsepower - Maximum | 20 |
| Performance | Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only |
| Number of Poles | 3 Pole |
| Standard | CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402 |
| Voltage Rating | 600 VAC |
| Weight | 1.1 lb. |
| General Literature Asset 1 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| General Literature Asset 3 Display Text | Pulp & Paper Solutions |
| Connectivity | Back and Side Wired |
| Display Size | Standard Sized Product |
| Load Capacity | Inductive |
| Operating Cycles | 10,000 Cycles Minimum |
| Wattage | 18000 W |
| Description - Invoice | 30A 600V 3P DISC SW SHORTY |
| Harmonization Code | 8536509040 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Series | Short Toggle |
| BOX SIZE | 7.700x14.500x8.300 (in) |
| Carton - Number of Sub Packs | 30 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585680514 |
| Case - Total Units | 30 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585680513 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Color | Black |
|---|---|
| Width | 2.500 in |
| Industry Standard(s) | CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402 |
| Current Rating | 30 |
| Special Features | Short Toggle |
| Type | Back & Side Wire |
| Voltage Rating Description | 600 VAC |
| Engineering Drawing 1 Display Text | HBL7810S AutoCAD Drawing |
| General Literature Asset 2 Display Text | Circuit-Lock® Motor Disconnects |
| Amperage Rating | 30 A |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Poles | 3 Pole |
| Phase | Three Phase |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A16A240 |
| Material | Stainless Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 11.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 13.470 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 46.200 in |
| Pallet Weight | 1206.000 lb. |
| NAICS Code | 3353146111 |
