Hubbell Wiring Device-Kellems CPB20 Two Button Compact Pushbutton Station, NEMA 4X, 240VAC, Pilot Duty

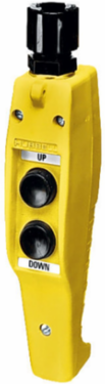

Two Button Compact Pushbutton Station, NEMA 4X, 240VAC, Pilot Duty
Two Button Compact Pushbutton Station, NEMA 4X, 240VAC, Pilot Duty
  • MPN: CPB20
  • UPC: 783585106809
  • PPN: HBL-CPB20
  • UNSPSC: 39121561

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$290.83/ EA

Description

Two Button Compact Version, Single Speed Normally Open, Pilot Duty, 240VAC, Terminal Screws

Features

  • Single-speed normally open-normally closed without mechanical interlock
  • Standard Product

Specifications

Specifications

Country of Origin
PR
Each - Width
3.400 in
Ingress Protection
IP55
Actuator
Push Buttons
Contact Configuration
Momentary
Enclosure
NEMA 4X
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Special Features
Standard Product
Type
Single Speed
Connectivity
Terminal Screws
Enclosure Type
NEMA 4X
Style
Two Button
Description - Invoice
COMPACT PEND, 2 BUTTON ON/OFF
Harmonization Code
8536509035
MSDS Flag
No
Material - Mounting Hardware
Cable Mounted
Series
Compact
BOX SIZE
9.300x13.700x11.700 (in)
Carton - Number of Sub Packs
25
Carton - SCC-14 Next Lower Level Sub Pack
783585106809
Case Weight
19.050 lb.
Lowest Level UOM
Each
Pallet Height
46.500 in
Pallet Weight
1047.750 lb.
Width3.400 in
Industry Standard(s)UL Listed
PerformanceEnvironmental -  Operating Temperatures - Max Continuous- 75 ° C, Minimum -40° w/o Impact
Amperage Rating120V AC- 6A, 240V AC 35% PF- 3A, 125V DC- 1.1A, Inductive 250V- .55 A
Contact RatingPilot Duty Only
Environmental ConditionsIndoor and Outdoor
PhaseSingle Phase
StandardUL Listed
Weight0.75 lb.
Display SizeCompact
Nema RatingNEMA 4X
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
Indicator(s) TypeNone
Base Unit of MeasureEA
Carton - Gross Weight per Pack18.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585106808
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
