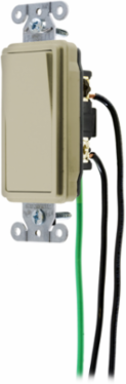

Hubbell Wiring Device-Kellems DSL315I Decorator Switch, 15A 120/277V AC, Pre-Wired with 8" #12 AWG, Ivory
Hubbell Wiring Device-Kellems DSL315I Decorator Switch, 15A 120/277V AC, Pre-Wired with 8" #12 AWG, Ivory
- MPN: DSL315I
- UPC: 783585151052
- PPN: HBL-DSL315I
- UNSPSC: 39122226
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.63/ EA
Description
Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Three Way, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Ivory
Features
- Labor Saving
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
Specifications
Specifications
- Country of Origin
- CN
- Dimensions
- 4.12 in x 1.73 in x 1.61 in
- Height
- 1.61 in
- Length
- 4.12 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Amperage Rating
- 15 A
- Color
- Ivory
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 120-277 VAC
- Connectivity
- Pre-Wired
- Number Of Poles
- Single Pole
- Wire Size
- #12 AWG
- Description - Invoice
- SWITCH, DECO, 3W, 15A 120/277V, IV, WL
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 15 A
- Series
- General Purpose
- BOX SIZE
- 5.625x18.375x14.625 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585151052
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Each - Width1.910 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - 8" #12 AWG THHN
ActionSPDT
Application8" #12 AWG THHN
Number of PolesSingle Pole
Size4.12 in x 1.73 in x 1.61 in
TypeRocker/Decorator
Width1.73 in
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleThree Way
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A250
MaterialPolycarbonate
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
